Section 85 (Can Communication System (HEV) - Circuit Tests (1 Of 6) & Diagnostic Codes)
>>
CAN COMMUNICATION SYSTEM (for HV Model)
>>
Main Body ECU Communication Stop Mode [08/2023 - ]
>>

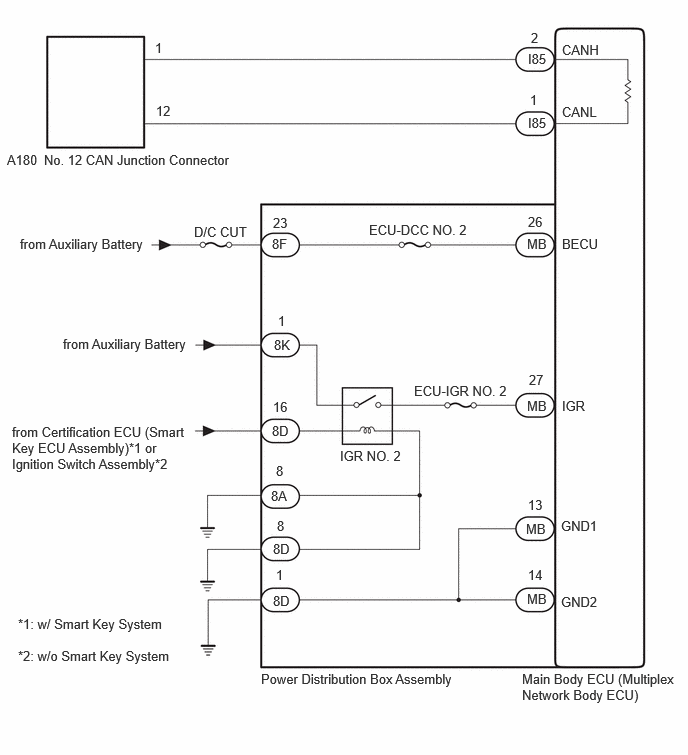

Wiring Diagram
Main Body ECU Communication Stop Mode [08/2023 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
