Hybrid Vehicle Control ECU Communication Stop Mode [01/2019 - 04/2020]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

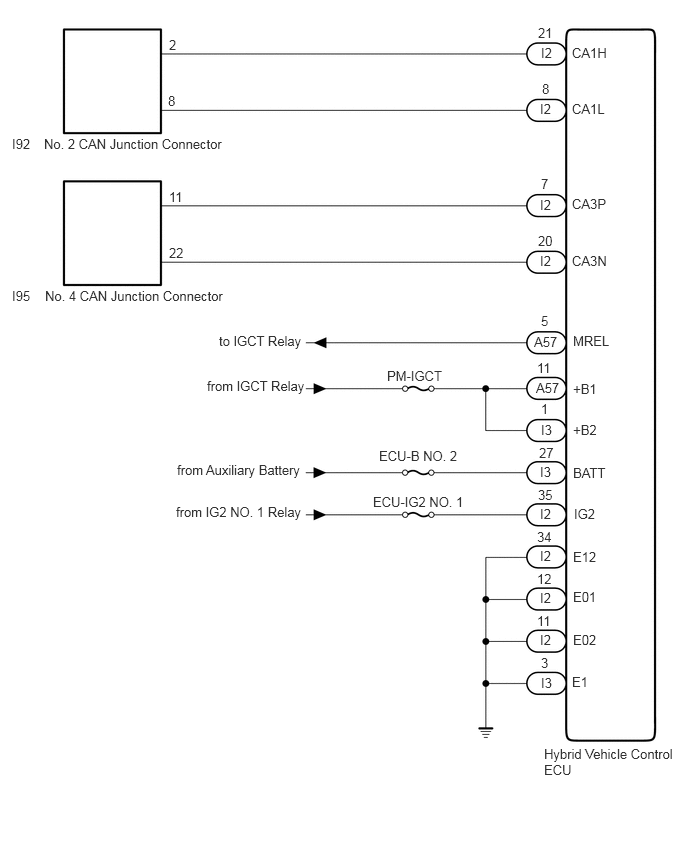

GTY926182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
