Section 81 (Can Communication System (HEV) - Circuit Tests (2 Of 6))
>>
CAN COMMUNICATION SYSTEM (for HV Model)
>>
Radio Receiver Assembly Communication Stop Mode [09/2022 - ]
>>
Wiring Diagram
Radio Receiver Assembly Communication Stop Mode [09/2022 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

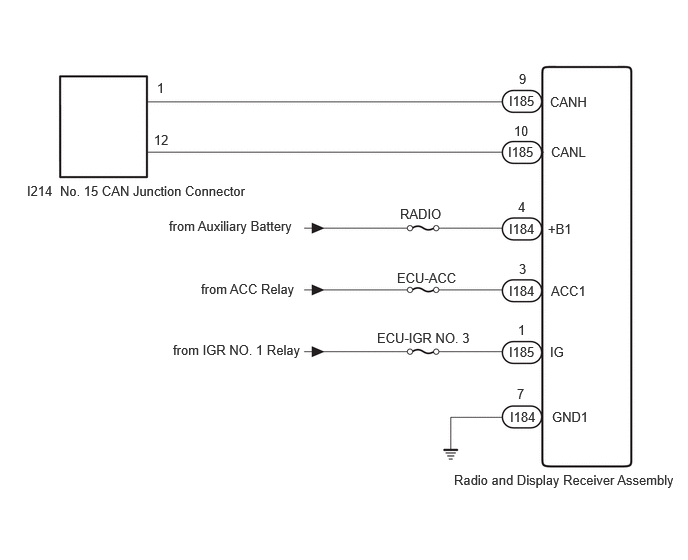

for Single Knob Type
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

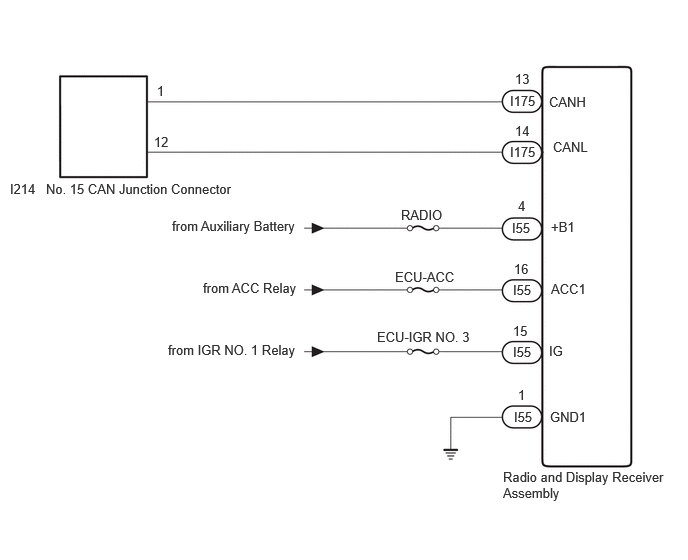

for Knobless Type
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
