Radio Receiver Assembly Communication Stop Mode [01/2019 - 09/2022]: Procedure

1. Disconnect the cable from the negative (-) auxiliary battery terminal.
2. Disconnect the I56 radio and display receiver assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   I56-13 (CANH) - I56-14 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Radio and Display Receiver Assembly)

   Result

   Result
   OK
   NG

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY)

Result:

OK

See step  2

1. Disconnect the I55 radio and display receiver assembly connector.
2. Measure the resistance according to the value(s) in the table below.

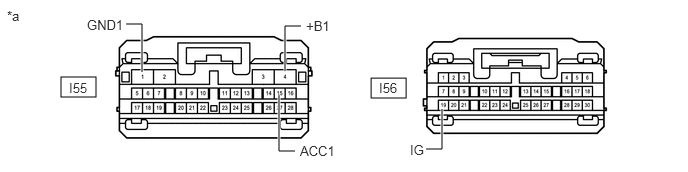

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Front view of wire harness connector (to Radio and Display Receiver Assembly)

   -

   -

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   I55-1 (GND1) - Body ground	Cable disconnected from negative (-) auxiliary battery terminal	Below 1 Ω

3. Reconnect the cable to the negative (-) auxiliary battery terminal.
4. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   I56-19 (IG) - Body ground	Power switch on (IG)	11 to 14 V
   I55-4 (+B1) - Body ground	Power switch off	11 to 14 V
   I55-15 (ACC1) - Body ground	Power switch on (ACC)	11 to 14 V

   Result

   Result
   OK
   NG

Result:

OK

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Refer to REMOVAL [01/2019 - 03/2019] , or refer to REMOVAL [03/2019 - 09/2022]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
