Section 81 (Can Communication System (HEV) - Circuit Tests (2 Of 6))
>>
CAN COMMUNICATION SYSTEM (for HV Model)
>>
Open in Bus 2 Main Bus Line [01/2019 - 04/2020]
>>

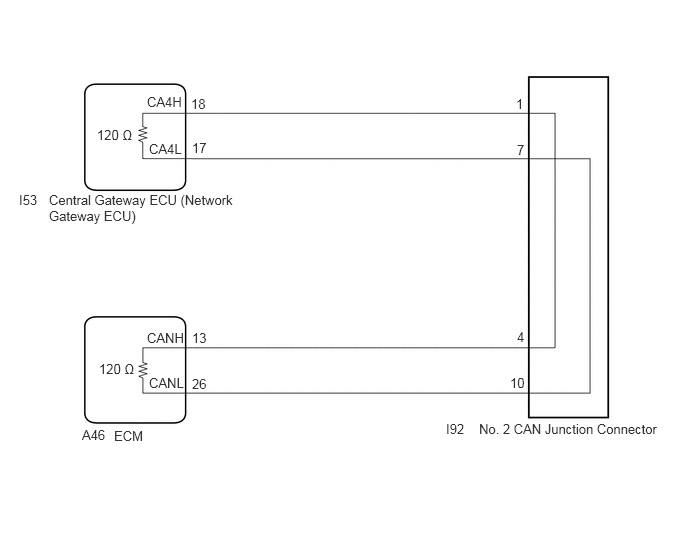

Wiring Diagram
Open in Bus 2 Main Bus Line [01/2019 - 04/2020]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
