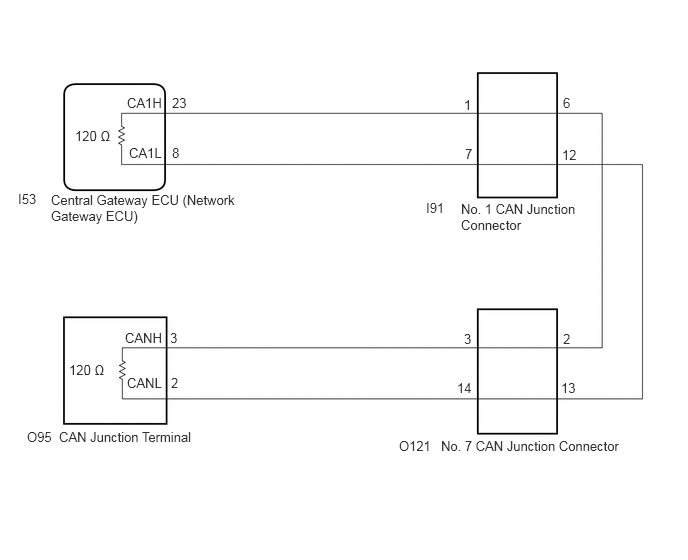

Open in Bus 1 Main Bus Line [01/2019 - 09/2022]: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
w/ Blind Spot Monitor System
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
w/o Blind Spot Monitor System
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
