Parts Location [09/2022 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

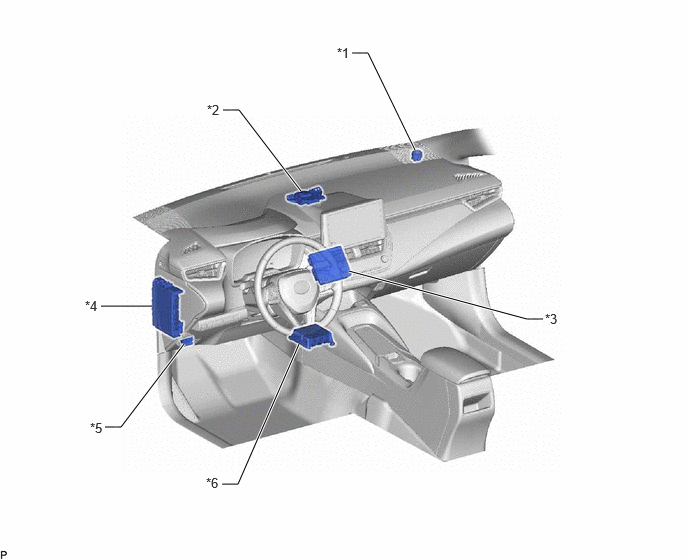

GTY1120418

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT NO. 2 SPEAKER ASSEMBLY (RH)	*2	TELEPHONE AND GPS ANTENNA (for Front Side) - Telephone Sub - GPS
*3	DCM (TELEMATICS TRANSCEIVER) - BUB (BACK-UP BATTERY)	*4	POWER DISTRIBUTION BOX ASSEMBLY - ECU-IGR NO. 3 FUSE - DCM FUSE
*5	DLC3	*6	AIRBAG SENSOR ASSEMBLY

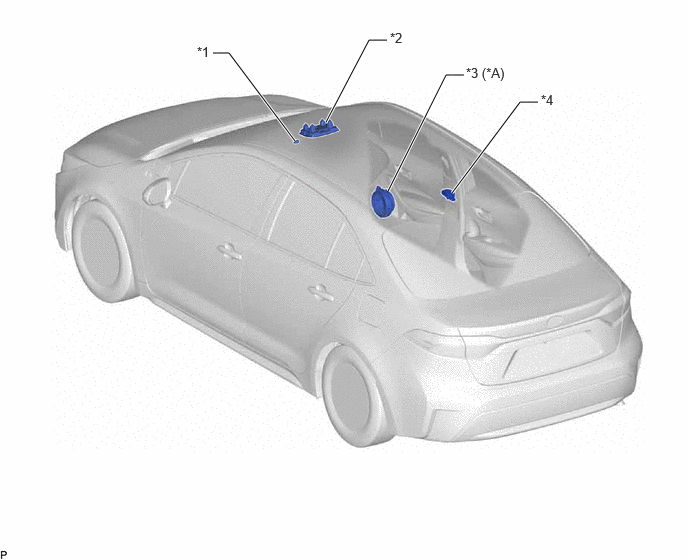

GTY1122054

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Stereo Component Amplifier Assembly	-	-
*1	TELEPHONE MICROPHONE ASSEMBLY LH	*2	MAP LIGHT ASSEMBLY - MANUAL (SOS) SWITCH
*3	FRONT NO. 1 SPEAKER ASSEMBLY (RH)	*4	TELEPHONE AND GPS ANTENNA (for Roof Side) - Telephone Main

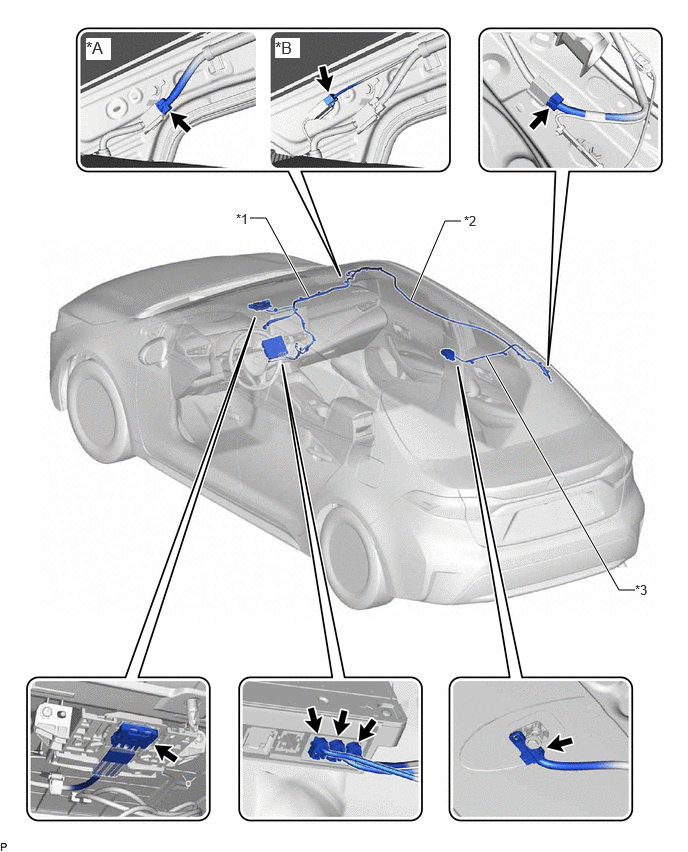

GTY1121878

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o SXM Function	*B	w/ SXM Function
*1	TELEPHONE AND GPS ANTENNA CORD (ANTENNA CORD SUB-ASSEMBLY)	*2	TELEPHONE AND GPS ANTENNA CORD (NO. 2 ANTENNA CORD SUB-ASSEMBLY)
*3	TELEPHONE AND GPS ANTENNA CORD (NO. 3 ANTENNA CORD SUB-ASSEMBLY)	-	-
