Parts Location [04/2020 - 09/2022]: Illustration

WARNING: This page is about a different variant/trim than selected.

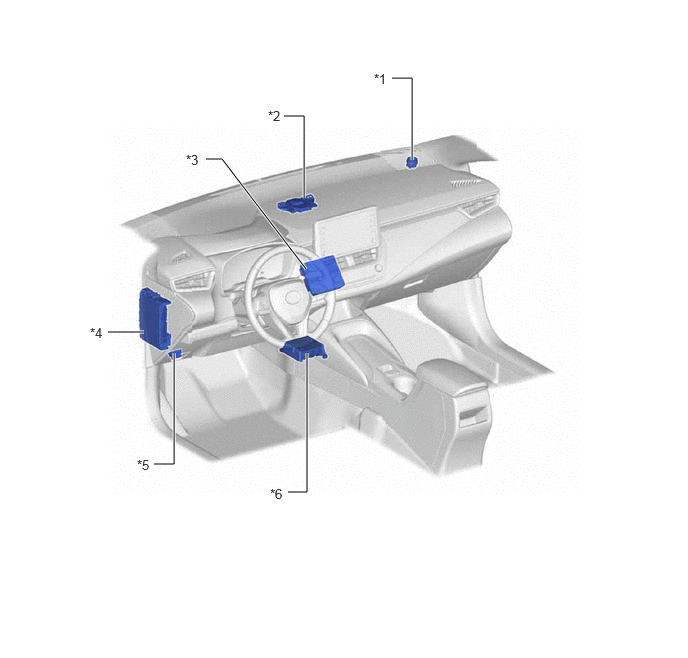

GTY985635

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT NO. 2 SPEAKER ASSEMBLY (RH)	*2	TELEPHONE AND GPS ANTENNA (for Front Side) - Telephone Sub
*3	DCM (TELEMATICS TRANSCEIVER) - BUB (BACK-UP BATTERY)	*4	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG2 NO. 3 FUSE
*5	DLC3	*6	AIRBAG SENSOR ASSEMBLY

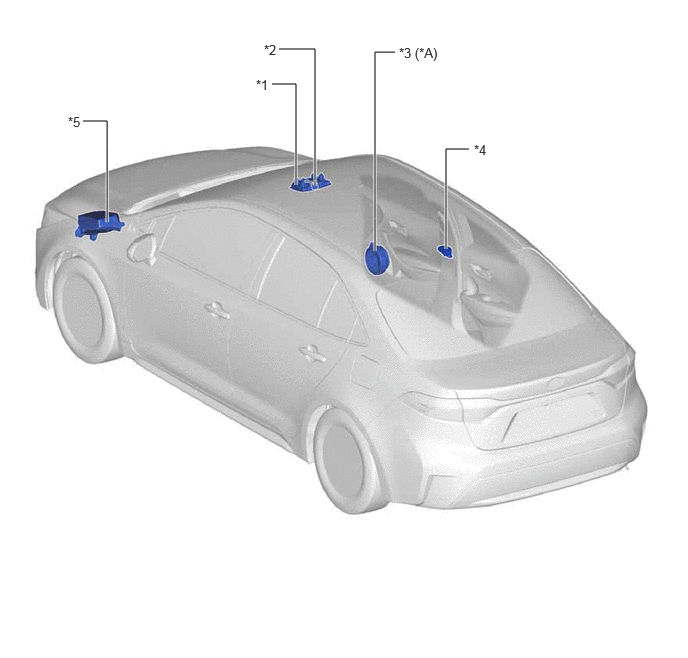

GTY985211

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Stereo Component Amplifier Assembly	-	-
*1	MAP LIGHT ASSEMBLY - MANUAL (SOS) SWITCH	*2	TELEPHONE MICROPHONE ASSEMBLY
*3	FRONT NO. 1 SPEAKER ASSEMBLY (RH)	*4	TELEPHONE AND GPS ANTENNA (for Roof Side) - Telephone Main - GPS
*5	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - DCM/MAYDAY FUSE	-	-

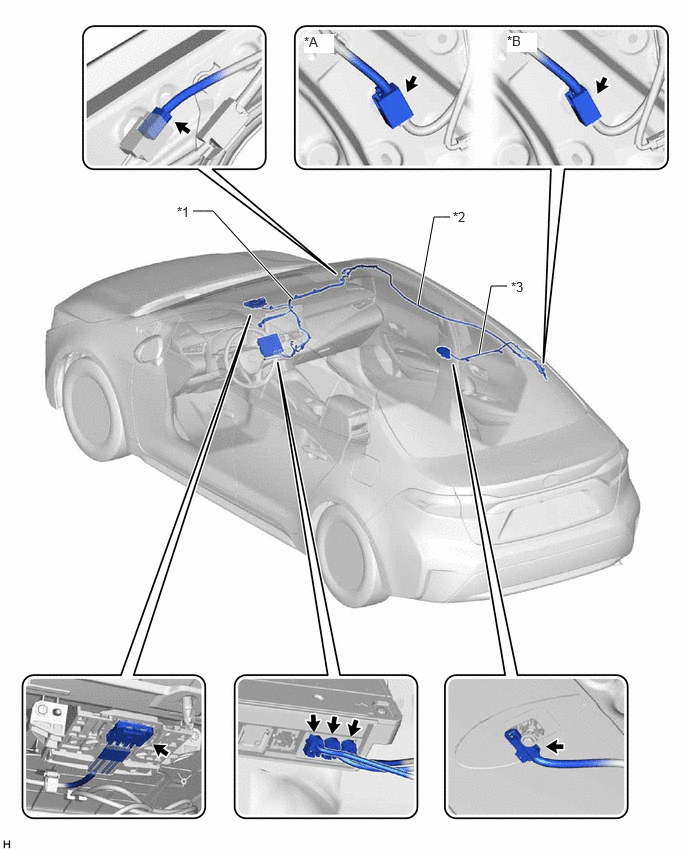

GTY984636

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ SXM Function	*B	w/o SXM Function
*1	TELEPHONE AND GPS ANTENNA CORD (NO. 2 ANTENNA CORD SUB-ASSEMBLY)	*2	TELEPHONE AND GPS ANTENNA CORD (ANTENNA CORD SUB-ASSEMBLY (for Type A))
*3	TELEPHONE AND GPS ANTENNA CORD (ANTENNA CORD SUB-ASSEMBLY (for Type B))	-	-
