Parts Location [01/2019 - 04/2020]: Illustration

WARNING: This page is about a different variant/trim than selected.

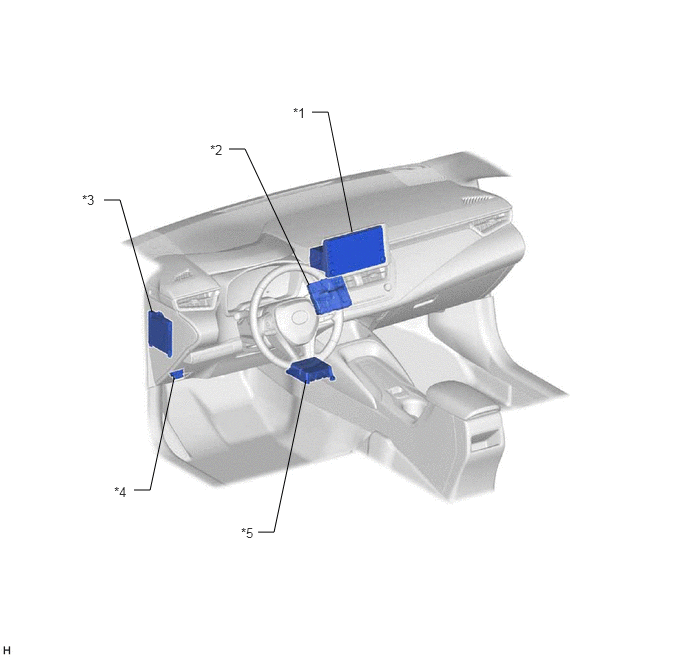

GTY920952

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	RADIO AND DISPLAY RECEIVER ASSEMBLY	*2	DCM (TELEMATICS TRANSCEIVER) - BUB (BACK-UP BATTERY)
*3	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG2 NO. 3 FUSE - ECU-ACC FUSE	*4	DLC3
*5	AIRBAG SENSOR ASSEMBLY	-	-

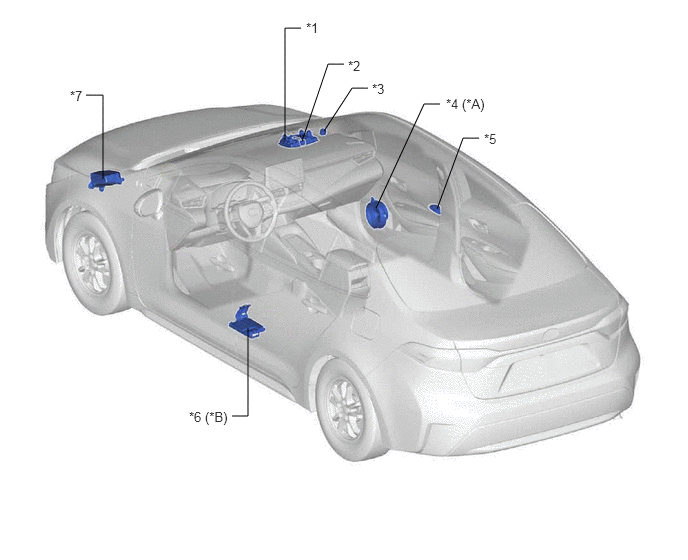

GTY840006

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 6 Speakers	*B	for 8 Speakers
*1	MAP LIGHT ASSEMBLY - MANUAL (SOS) SWITCH	*2	TELEPHONE MICROPHONE ASSEMBLY
*3	FRONT NO. 2 SPEAKER ASSEMBLY RH	*4	FRONT NO. 1 SPEAKER ASSEMBLY RH
*5	TELEPHONE AND GPS ANTENNA ASSEMBLY (for Roof Side) - GPS - Telephone Main	*6	STEREO COMPONENT AMPLIFIER ASSEMBLY
*7	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - DCM/MAYDAY FUSE	-	-

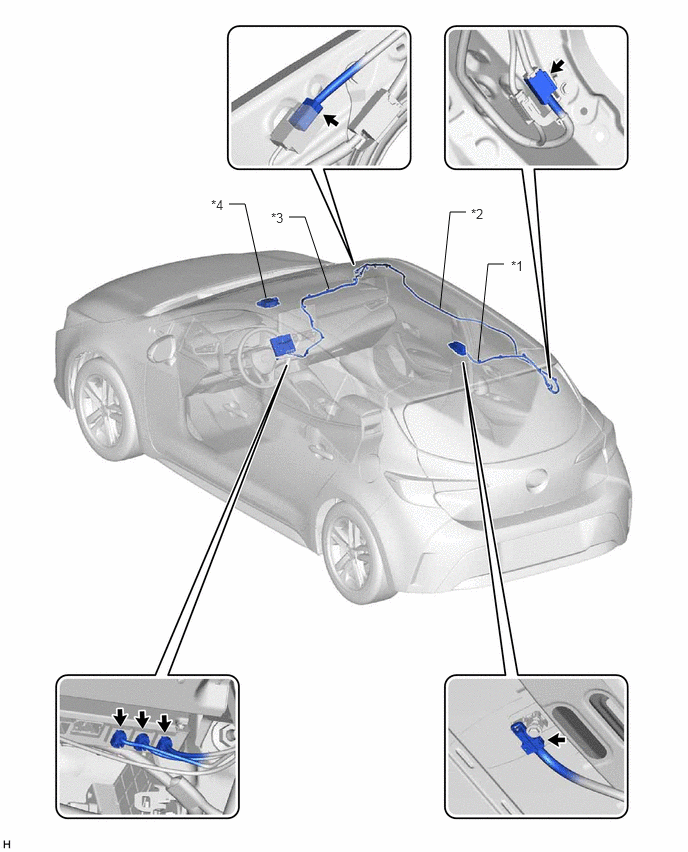

GTY846554

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	TELEPHONE AND GPS ANTENNA CORD (ANTENNA CORD SUB-ASSEMBLY (for Type B))	*2	TELEPHONE AND GPS ANTENNA CORD (ANTENNA CORD SUB-ASSEMBLY (for Type A))
*3	TELEPHONE AND GPS ANTENNA CORD (NO. 2 ANTENNA CORD SUB-ASSEMBLY)	*4	TELEPHONE AND GPS ANTENNA ASSEMBLY (for Front Side) - Telephone Sub
