Removal [09/2022 - 11/2022]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE CHAIN SUB-ASSEMBLY

    Refer to REMOVAL [09/2022 - 11/2022]

  2. REMOVE CRANKSHAFT TIMING SPROCKET

    Refer to PROCEDURE - Step 26

  3. REMOVE NO. 2 CHAIN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 27

  4. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 47

  5. REMOVE OIL PUMP ASSEMBLY

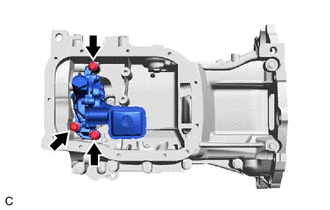

    1. Remove the 3 bolts and oil pump assembly from the stiffening crankcase assembly.
      GTY540847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
