Disassembly [01/2019 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE OIL PUMP RELIEF VALVE
- Using a 27 mm socket wrench, remove the oil pump relief valve plug from the oil pump body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
Oil Pump Relief Valve Plug |
| *2 |
Oil Pump Relief Valve Spring |
| *3 |
Oil Pump Relief Valve |
- Remove the oil pump relief valve spring and oil pump relief valve from the oil pump body.
- REMOVE OIL PUMP COVER SUB-ASSEMBLY

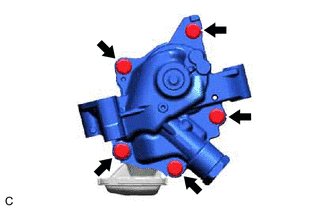

- Remove the 5 bolts and oil pump cover sub-assembly from the oil pump body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
