Components [01/2019 - ]

WARNING: This page is about a different variant/trim than selected.

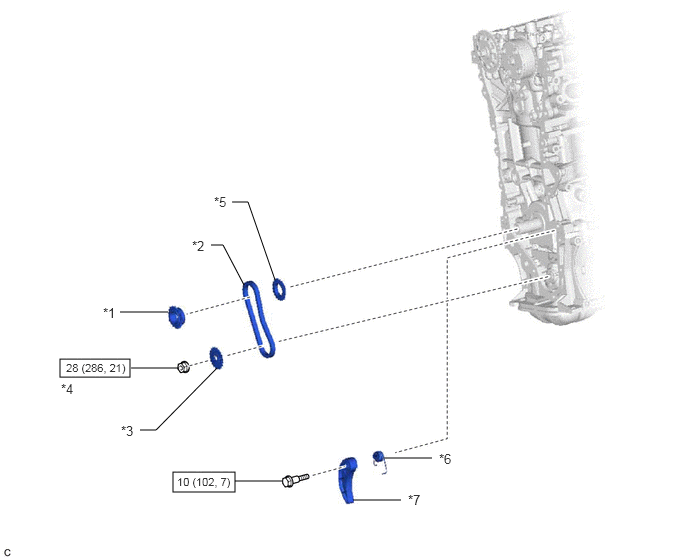

Fig 1: Oil Pump Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CRANKSHAFT TIMING SPROCKET	*2	NO. 2 CHAIN SUB-ASSEMBLY
*3	OIL PUMP DRIVE SHAFT GEAR	*4	OIL PUMP DRIVE SHAFT GEAR NUT
*5	OIL PUMP DRIVE GEAR	*6	CHAIN DAMPER SPRING
*7	CHAIN TENSIONER PLATE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

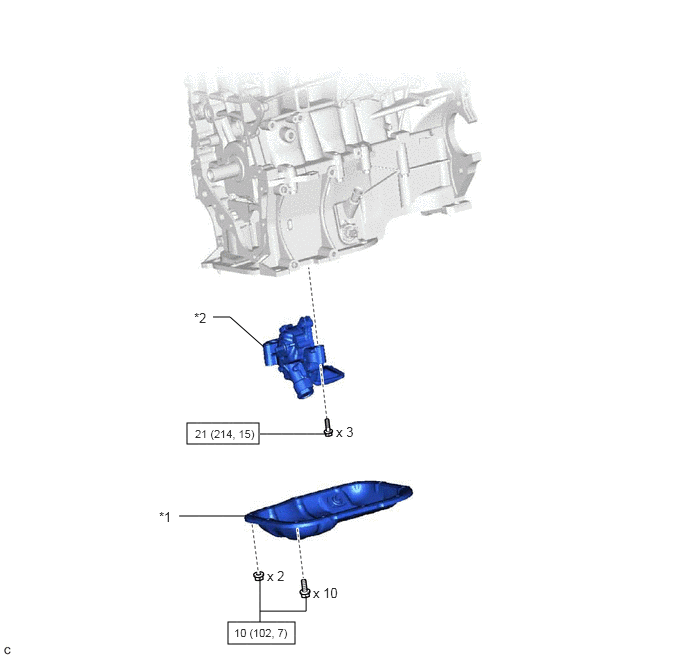

Fig 2: Oil Pump Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 2 OIL PAN SUB-ASSEMBLY	*2	OIL PUMP ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

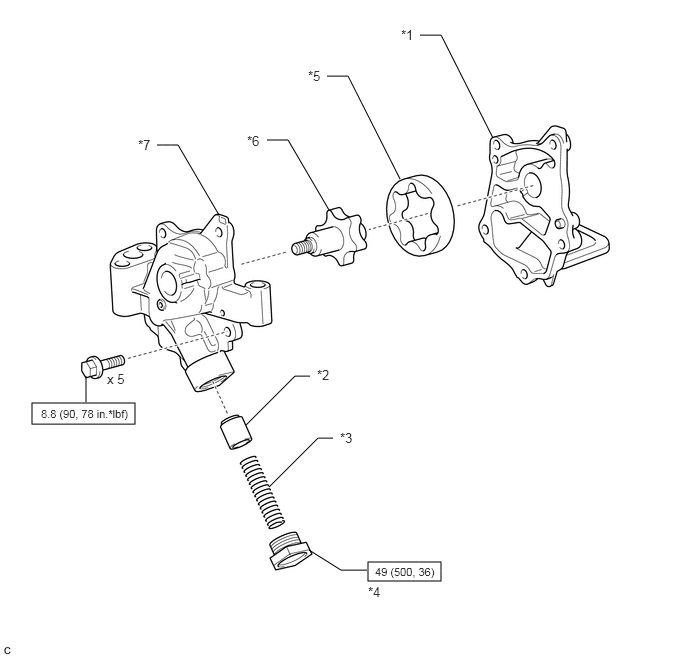

Fig 3: Oil Pump Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	OIL PUMP COVER SUB-ASSEMBLY	*2	OIL PUMP RELIEF VALVE
*3	OIL PUMP RELIEF VALVE SPRING	*4	OIL PUMP RELIEF VALVE PLUG
*5	OIL PUMP DRIVEN ROTOR	*6	OIL PUMP DRIVE ROTOR
*7	OIL PUMP BODY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
