Components [01/2019 - ]

WARNING: This page is about a different variant/trim than selected.

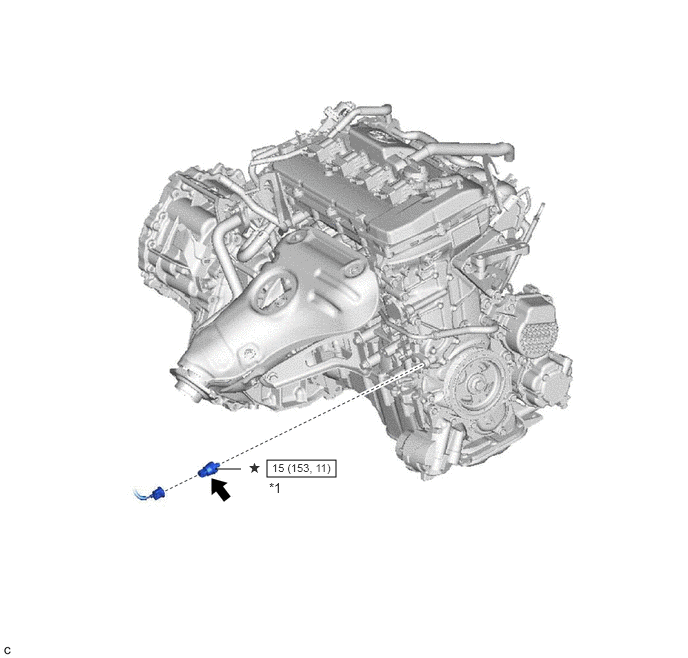

Fig 1: Oil Pressure Switch Replacement Components With Torque Specifications
GTY921263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE OIL PRESSURE SWITCH ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque Adhesive 1344
* Precoated part - -
