Parts Location [09/2022 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

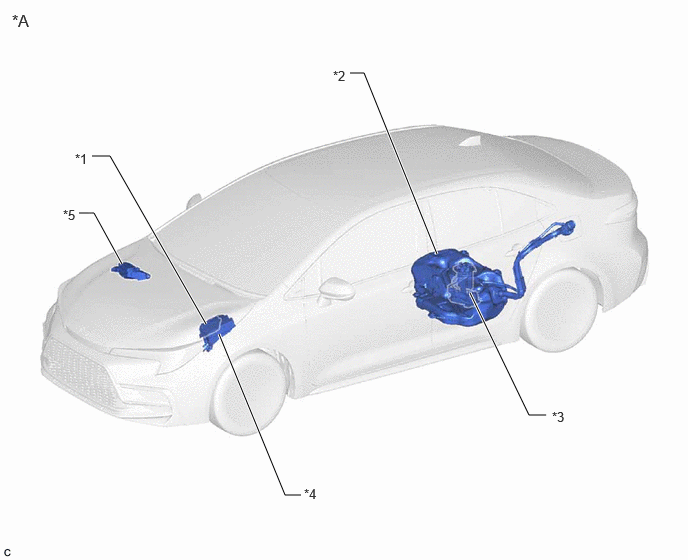

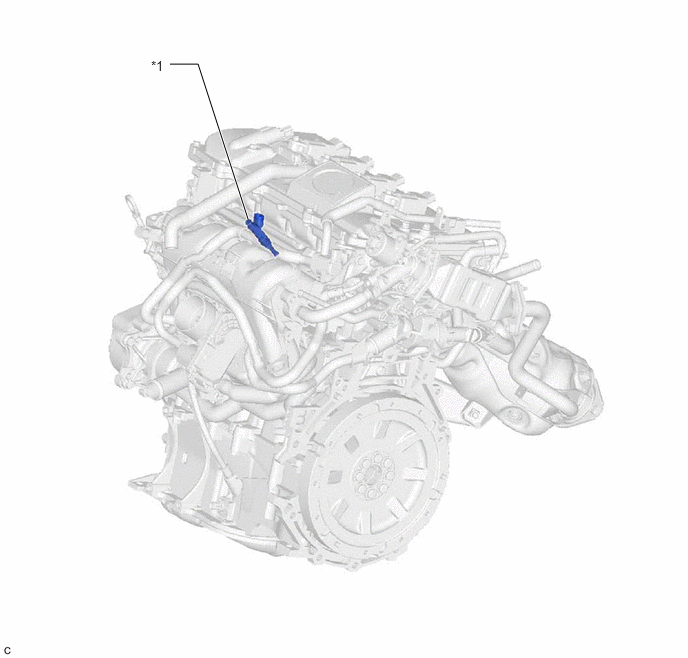

| *A | w/ Canister Pump Module | - | - |
| *1 | ECM | *2 | FUEL TANK ASSEMBLY |
| *3 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - FUEL SENDER GAUGE ASSEMBLY - FUEL PUMP - FUEL PRESSURE REGULATOR ASSEMBLY |
*4 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - EFI-MAIN RELAY - IG2 NO. 1 RELAY - INJ FUSE - ECU-IG2 NO. 1 FUSE |
| *5 | NO. 2 RELAY BLOCK ASSEMBLY - C/OPN RELAY |
- | - |
| *A | w/o Canister Pump Module | - | - |
| *1 | ECM | *2 | FUEL TANK ASSEMBLY |
| *3 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - FUEL SENDER GAUGE ASSEMBLY - FUEL PUMP - FUEL PRESSURE REGULATOR ASSEMBLY |
*4 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - EFI-MAIN RELAY - IG2 NO. 1 RELAY - INJ FUSE - ECU-IG2 NO. 1 FUSE |
| *5 | NO. 2 RELAY BLOCK ASSEMBLY - C/OPN RELAY |
- | - |
