Section 74 (Electronically Controlled Brake System (HEV) - Diagnostic Codes (6 Of 6), Symptom Tests & Circuit Tests)
>>
ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HV Model)
>>
VSC OFF Switch Circuit [01/2019 - 09/2022]
>>
Wiring Diagram

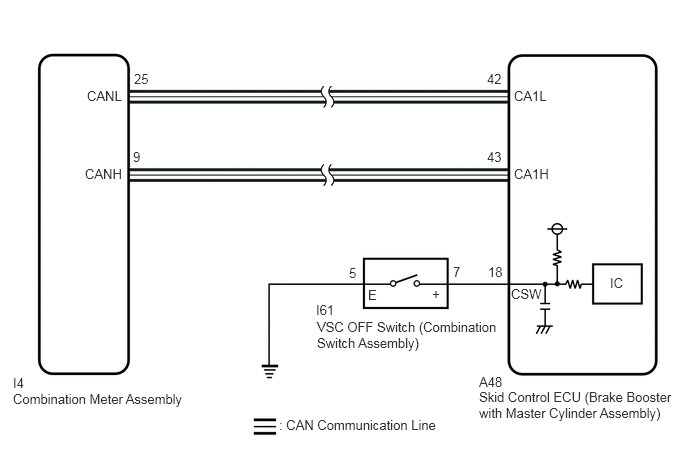

VSC OFF Switch Circuit [01/2019 - 09/2022]: Wiring Diagram
