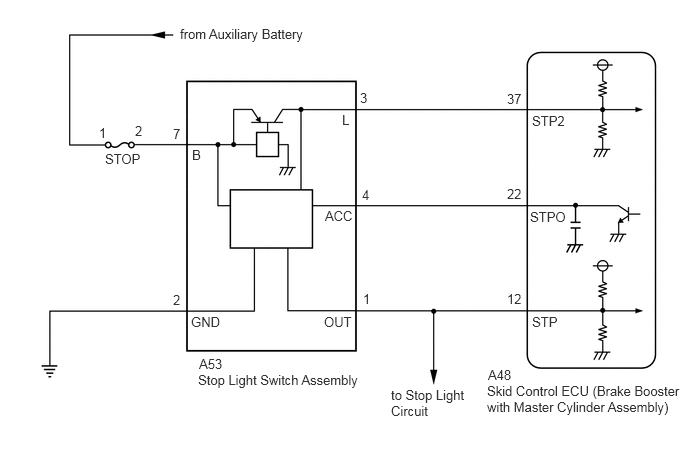

DTC C1425: Open in Stop Switch Circuit; DTC P0573: Brake Switch "A" Circuit High [01/2019 - 09/2022]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY903966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
