Section 67 (Tire Pressure Warning System (HEV) - Diagnostic Codes, Circuit Tests & Symptom Tests)
>>
TIRE PRESSURE WARNING SYSTEM (for HV Model)
>>
Tire Pressure Warning Reset Switch Circuit [09/2022 - ]
>>

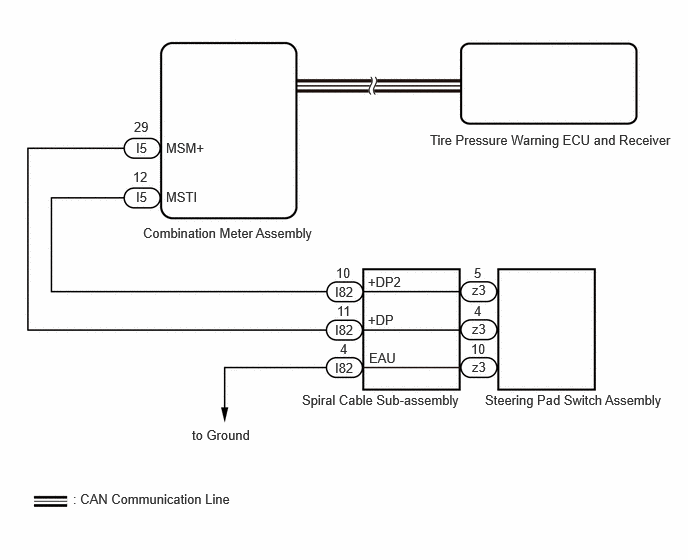

Wiring Diagram
Tire Pressure Warning Reset Switch Circuit [09/2022 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
