Components [09/2022 - ]
WARNING: This page is about a different variant/trim than selected.

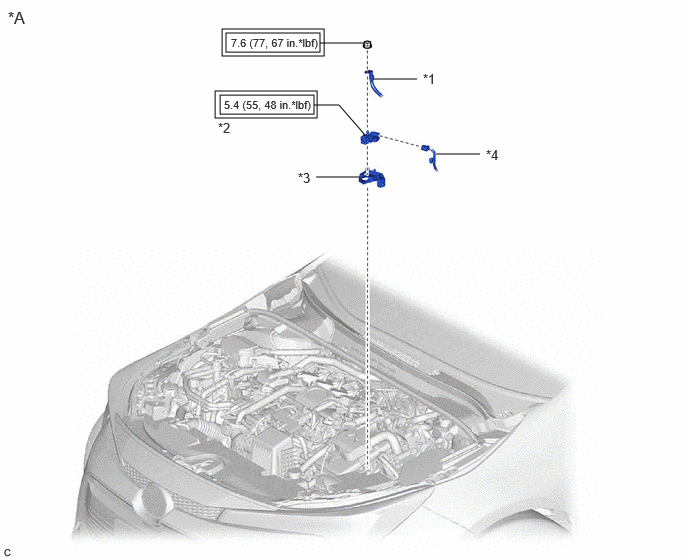

Fig 1: Battery Current Sensor Replacement Components With Torque Specifications [09/2022 - ] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | - | - |
| *1 | ENGINE WIRE | *2 | BATTERY STATE SENSOR ASSEMBLY |
| *3 | BATTERY CURRENT SENSOR HOLDER | *4 | WIRE HARNESS |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
Fig 2: Battery Current Sensor Replacement Components With Torque Specifications [09/2022 - ] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type B | - | - |
| *1 | ENGINE WIRE | *2 | BATTERY STATE SENSOR ASSEMBLY |
| *3 | BATTERY CURRENT SENSOR HOLDER | *4 | WIRE HARNESS |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
