Components [01/2019 - 09/2022]
WARNING: This page is about a different variant/trim than selected.

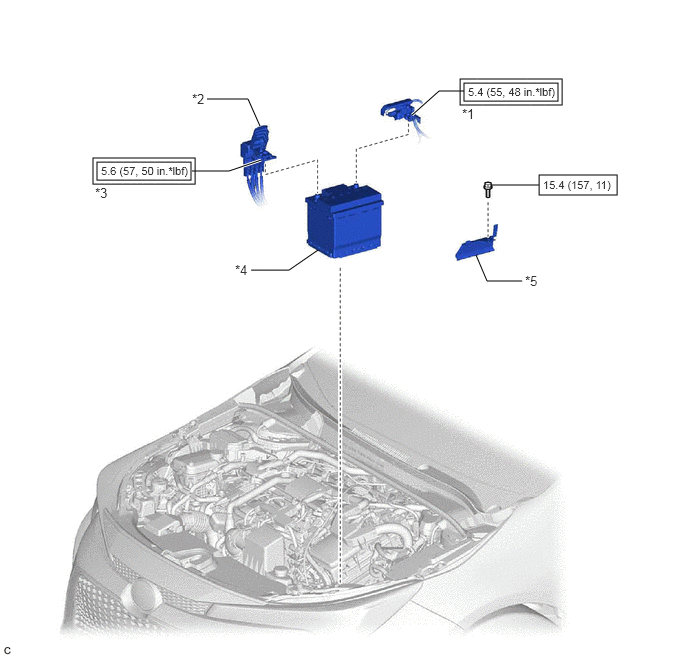

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NEGATIVE AUXILIARY BATTERY TERMINAL | *2 | FUSIBLE LINK COVER |
| *3 | POSITIVE AUXILIARY BATTERY TERMINAL | *4 | AUXILIARY BATTERY |
| *5 | NO. 2 BATTERY CLAMP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
