Section 63 (Hybrid Control System (Li-Ion W/ Pa10) - Diagnostic Codes (3 Of 3) & Circuit Tests)
>>
HYBRID CONTROL SYSTEM (for LITHIUM-ION BATTERY with PA10)
>>
ECU Power Source Circuit [09/2022 - ]
>>
Wiring Diagram

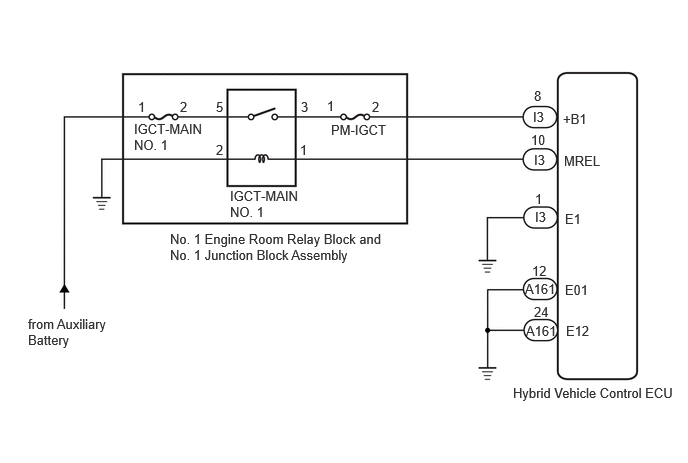

ECU Power Source Circuit [09/2022 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
