Drive Mode Select Switch Circuit [09/2022 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

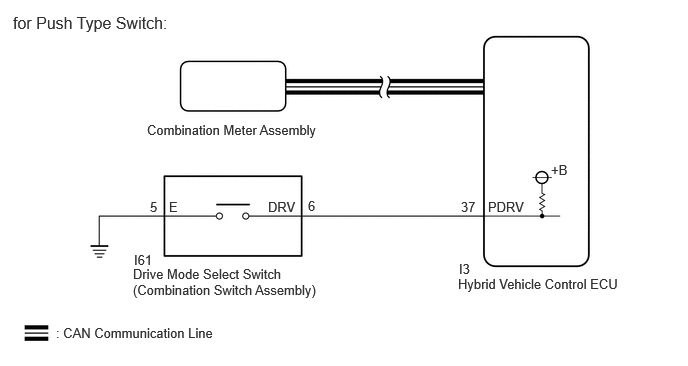

GTY1105466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

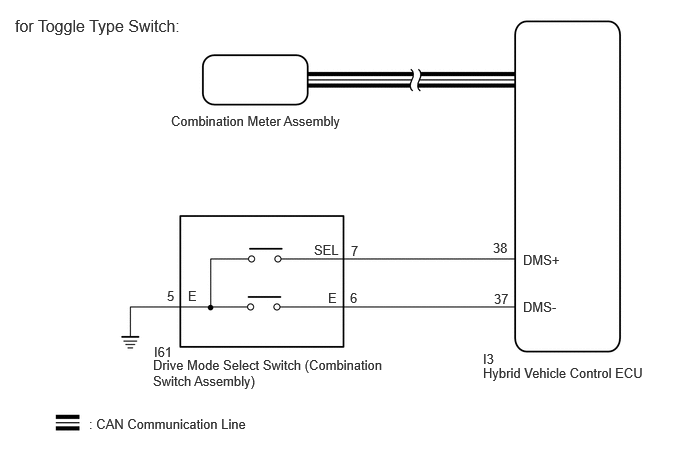

GTY1104871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
