Section 62 (Can Communication System (HEV) - Circuit Tests (4 Of 6))
>>
CAN COMMUNICATION SYSTEM (for HV Model)
>>
Check Bus 2 Line [09/2022 - ]
>>

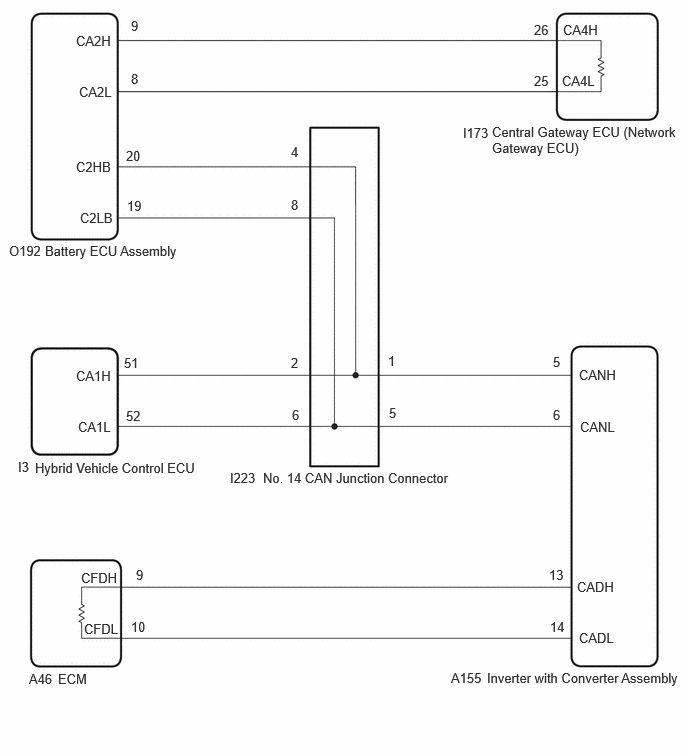

Wiring Diagram
Check Bus 2 Line [09/2022 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
