Parts Location [03/2023 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

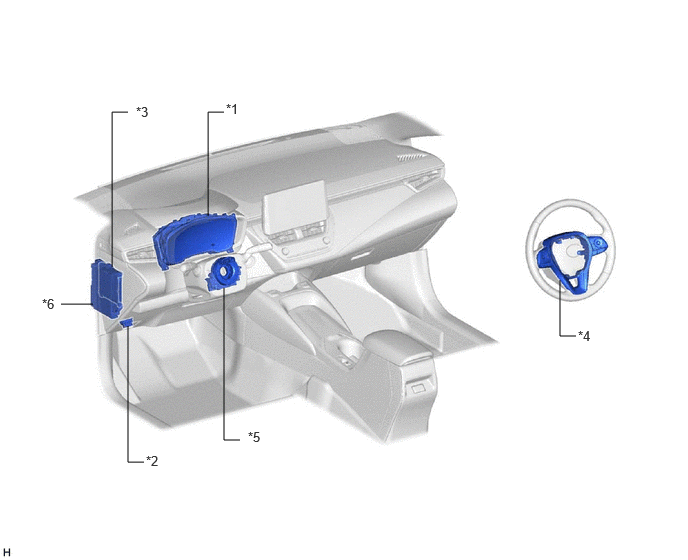

| *1 | COMBINATION METER ASSEMBLY - TIRE PRESSURE WARNING LIGHT - MULTI-INFORMATION DISPLAY |
*2 | DLC3 |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | STEERING PAD SWITCH ASSEMBLY |
| *5 | SPIRAL CABLE SUB-ASSEMBLY | *6 | POWER DISTRIBUTION BOX ASSEMBLY - ECU-B NO. 2 FUSE - ECU-IGR NO. 1 FUSE - ECU-DCC NO. 2 FUSE |
