Parts Location [01/2019 - 09/2022]: Illustration
WARNING: This page is about a different variant/trim than selected.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

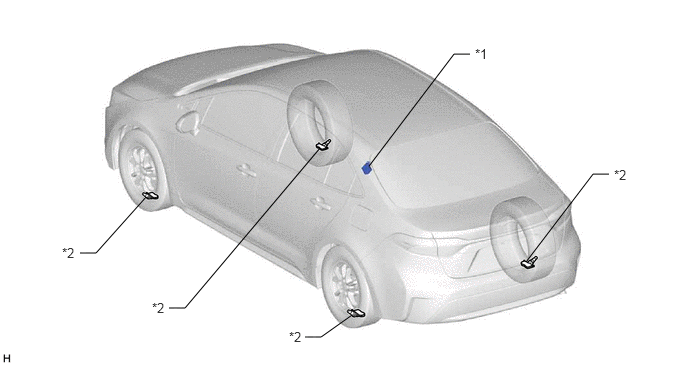

| *1 |
TIRE PRESSURE WARNING ECU AND RECEIVER |
*2 |
TIRE PRESSURE WARNING VALVE AND TRANSMITTER |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

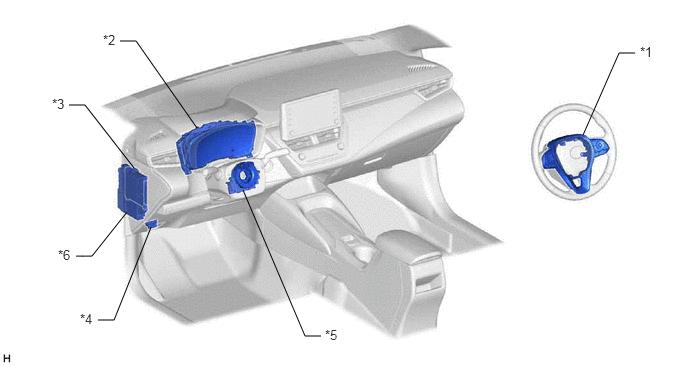

| *1 |
STEERING PAD SWITCH ASSEMBLY |
*2 |
COMBINATION METER ASSEMBLY
- TIRE PRESSURE WARNING LIGHT
- MULTI-INFORMATION DISPLAY |
| *3 |
MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
*4 |
DLC3 |
| *5 |
SPIRAL CABLE SUB-ASSEMBLY |
*6 |
INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-IG1 NO. 4 FUSE
- ECU-B NO. 2 FUSE |
