Components [01/2019 - 09/2022]
WARNING: This page is about a different variant/trim than selected.

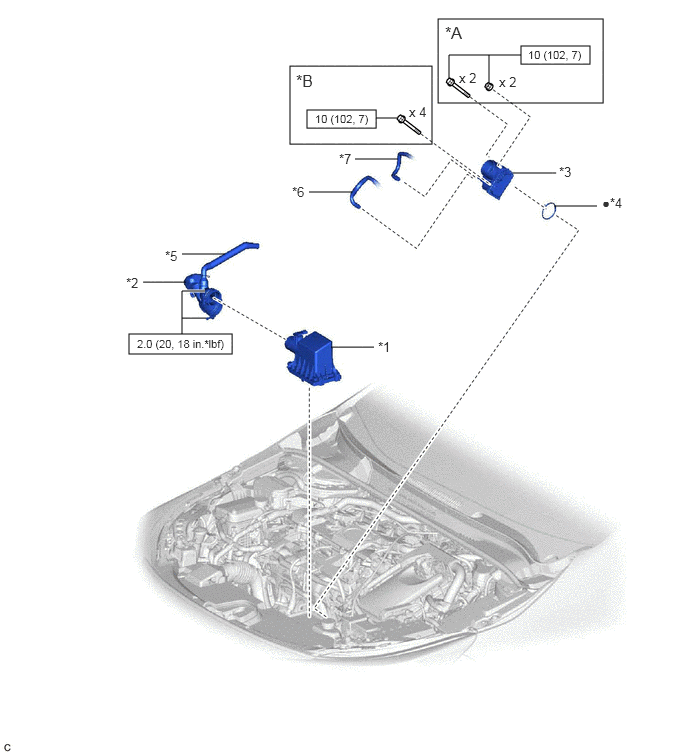

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Stud Bolt | *B | w/o Stud Bolt |
| *1 | AIR CLEANER CAP SUB-ASSEMBLY | *2 | AIR CLEANER HOSE ASSEMBLY |
| *3 | THROTTLE BODY ASSEMBLY | *4 | THROTTLE BODY GASKET |
| *5 | NO. 2 VENTILATION HOSE | *6 | WATER BY-PASS HOSE |
| *7 | NO. 2 WATER BY-PASS HOSE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
