Removal [09/2022 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE MASS AIR FLOW METER SUB-ASSEMBLY

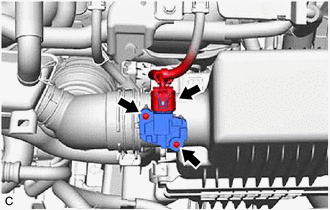

    1. Disconnect the mass air flow meter sub-assembly connector.
      GTY1107219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and mass air flow meter sub-assembly from the air cleaner cap sub-assembly.
      NOTE:

      If the mass air flow meter sub-assembly has been struck or dropped, replace it.
