Removal [01/2019 - 09/2022]: Procedure
WARNING: This page is about a different variant/trim than selected.

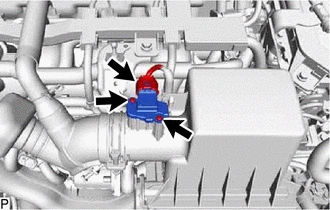

- REMOVE MASS AIR FLOW METER SUB-ASSEMBLY
- Disconnect the mass air flow meter sub-assembly connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 2 screws and mass air flow meter sub-assembly from the air cleaner cap sub-assembly.
NOTE:
If the mass air flow meter sub-assembly has been struck or dropped, replace it.
