Section 6 (Engine Control System (2ZR-FXE) - Service Information)
>>
Mass Air Flow Meter
>>
Components [01/2019 - 09/2022]
Components [01/2019 - 09/2022]
WARNING:
This page is about a different variant/trim than selected.

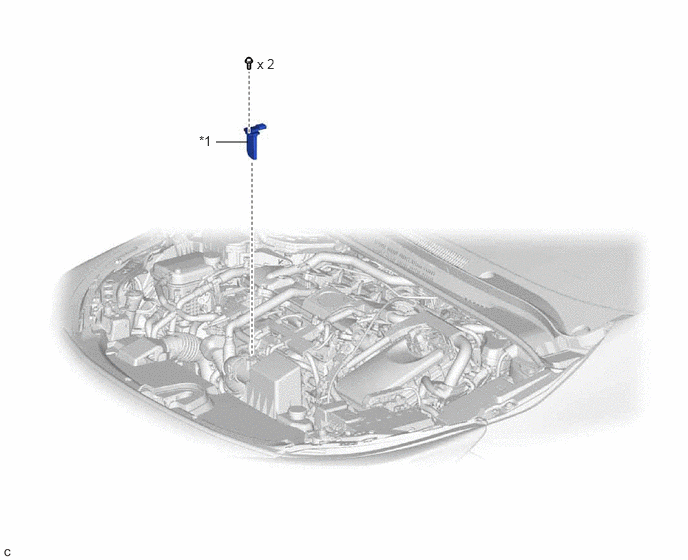

Fig 1: Mass Air Flow Meter Replacement Components [01/2019 - 09/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
MASS AIR FLOW METER SUB-ASSEMBLY
-
-
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
