Removal [01/2019 - 09/2022]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE IGNITION COIL ASSEMBLY

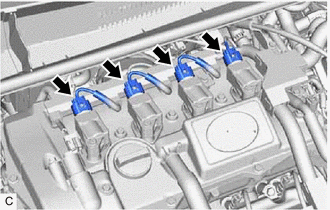

- Disconnect the 4 ignition coil assembly connectors.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

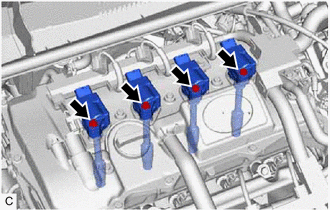

- Remove the 4 bolts and 4 ignition coil assemblies from the cylinder head cover sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
If an ignition coil assembly has been struck or dropped, replace it.
HINT:
Arrange the removed parts in the correct order.
- REMOVE SPARK PLUG
Refer to PROCEDURE - Step 2
