Components [01/2019 - ]

WARNING: This page is about a different variant/trim than selected.

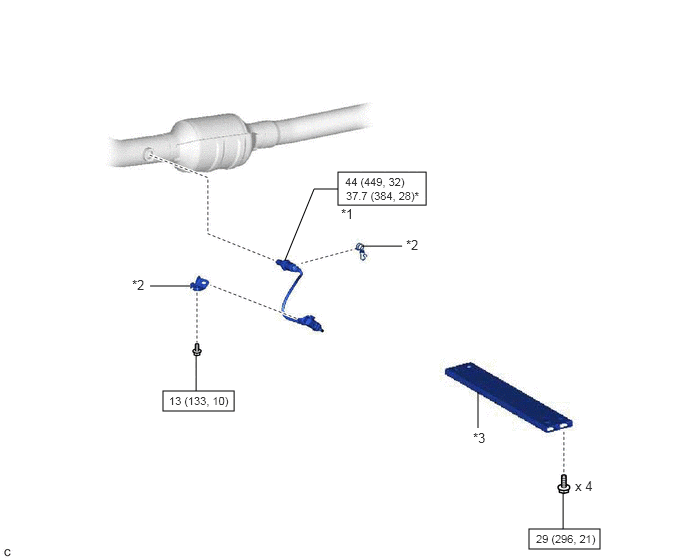

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications
GTY890224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 HEATED OXYGEN SENSOR *2 WIRE HARNESS CLAMP BRACKET
*3 FRONT FLOOR CENTER BRACE - -
N.m (kgf/cm, ft.lbf): Specified torque * For use with SST
