Components [01/2019 - 09/2022]
WARNING: This page is about a different variant/trim than selected.

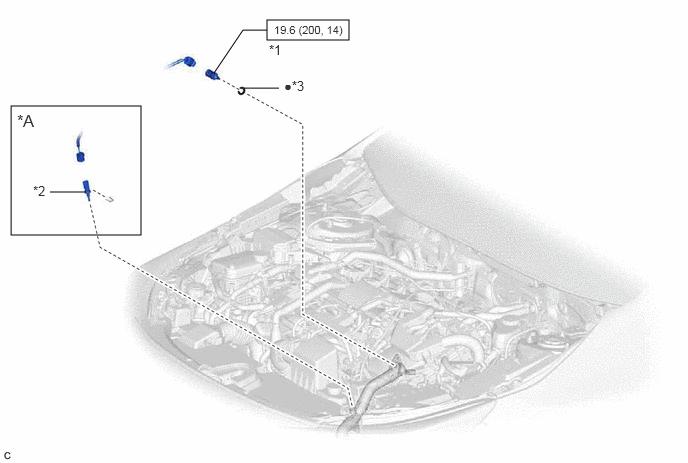

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications [01/2019 - 09/2022]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ No. 2 Engine Coolant Temperature Sensor | - | - |
| *1 | ENGINE COOLANT TEMPERATURE SENSOR | *2 | NO. 2 ENGINE COOLANT TEMPERATURE SENSOR |
| *3 | GASKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
