Components [01/2019 - 09/2022]

WARNING: This page is about a different variant/trim than selected.

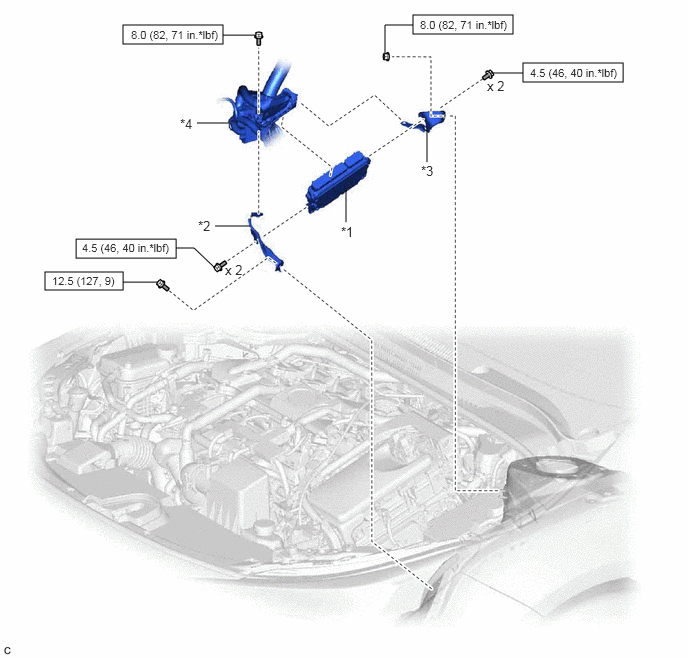

Fig 1: ECM Replacement Components With Torque Specifications [01/2019 - 09/2022]

Callout	Description	Callout	Description
*1	ECM	*2	NO. 1 ECM BRACKET
*3	NO. 2 ECM BRACKET	*4	ENGINE WIRE
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
