Components [01/2019 - 09/2022]
WARNING: This page is about a different variant/trim than selected.
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR ENGINE UNDER COVER RH | - | - |
| *a | Type A: x 7 Type B: x 8 |
- | - |

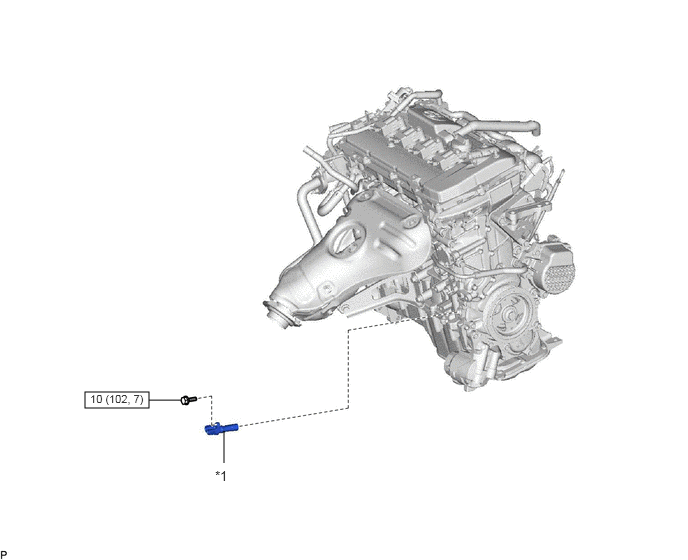

Fig 2: Crankshaft Position Sensor Replacement Components With Torque Specifications [01/2019 - 09/2022] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CRANKSHAFT POSITION SENSOR | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
