Components [01/2019 - ]

WARNING: This page is about a different variant/trim than selected.

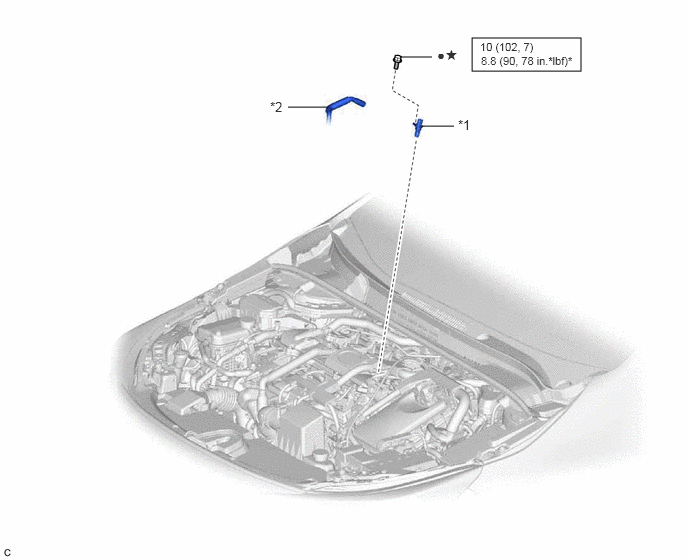

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications
GTY935131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT POSITION SENSOR *2 NO. 1 FUEL VAPOR FEED HOSE
N.m (kgf/cm, ft.lbf): Specified torque * For use with a union nut wrench
• Non-reusable part * Precoated part
