Components [01/2019 - ]

WARNING: This page is about a different variant/trim than selected.

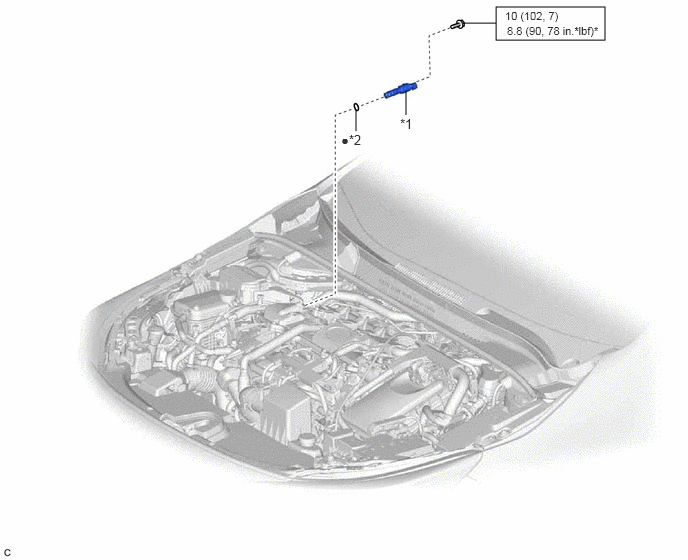

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications

Callout	Description	Callout	Description
*1	CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY	*2	O-RING
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with a union nut wrench
•	Non-reusable part	-	-
