Components [01/2019 - ]

WARNING: This page is about a different variant/trim than selected.

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL	*2	OUTER COWL TOP PANEL SUB-ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque

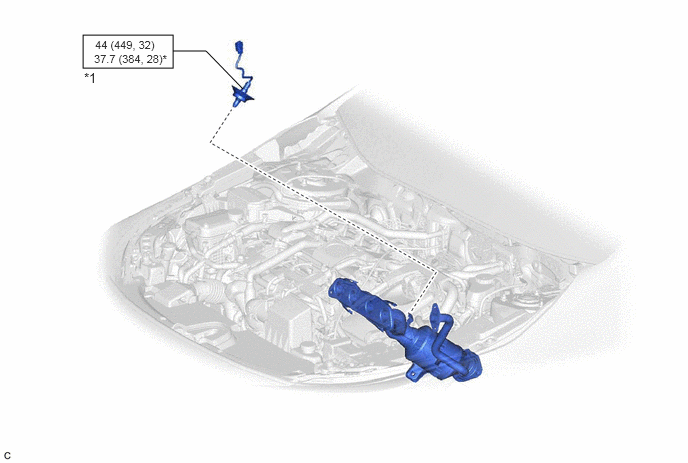

Fig 2: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	AIR FUEL RATIO SENSOR	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
