Components [01/2019 - 09/2022]

WARNING: This page is about a different variant/trim than selected.

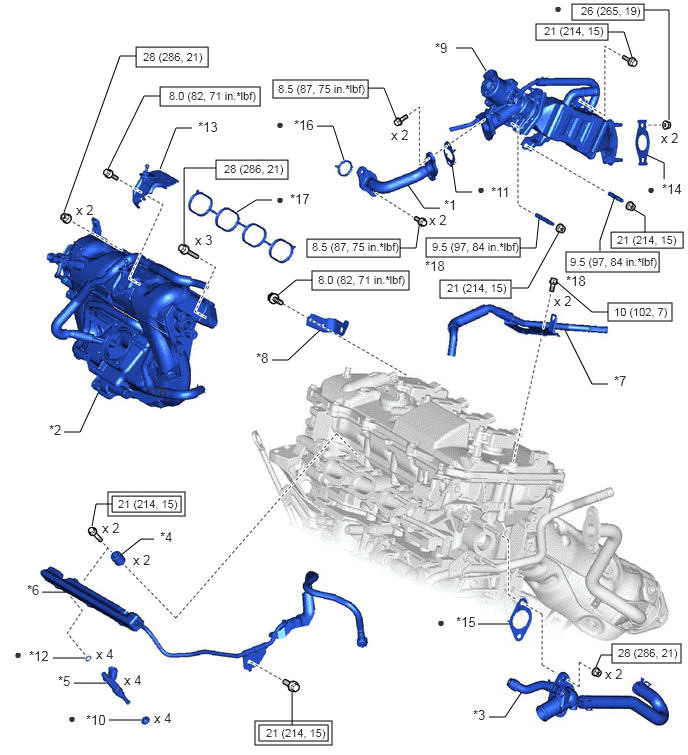

Fig 1: Engine Unit Replacement Components With Torque Specifications [01/2019 - 09/2022] (1 Of 8)
GTY912920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 EGR PIPE ASSEMBLY *2 INTAKE MANIFOLD
*3 WATER OUTLET *4 NO. 1 DELIVERY PIPE SPACER
*5 FUEL INJECTOR ASSEMBLY *6 FUEL DELIVERY PIPE SUB-ASSEMBLY
*7 FUEL VAPOR FEED PIPE *8 WIRE HARNESS CLAMP BRACKET
*9 EGR VALVE ASSEMBLY WITH EGR COOLER *10 INJECTOR VIBRATION INSULATOR
*11 EGR PIPE GASKET *12 O-RING
*13 ENGINE COVER BRACKET *14 EGR COOLER GASKET
*15 WATER OUTLET GASKET *16 INLET EGR GASKET
*17 NO. 1 INTAKE MANIFOLD TO HEAD GASKET *18 STUD BOLT
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
• Non-reusable part - -

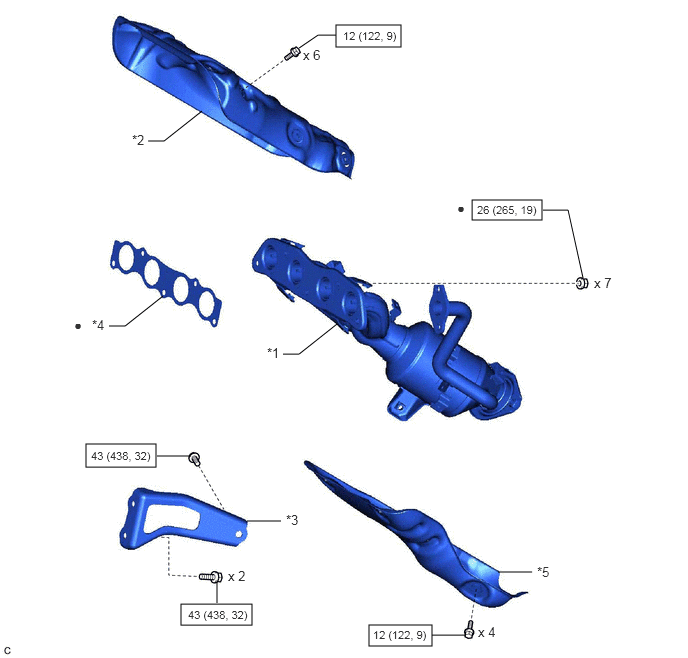

Fig 2: Engine Unit Replacement Components With Torque Specifications [01/2019 - 09/2022] (2 Of 8)
GTY875949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 EXHAUST MANIFOLD (TWC: Front Catalyst) *2 NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
*3 MANIFOLD STAY *4 EXHAUST MANIFOLD TO HEAT GASKET
*5 NO. 2 EXHAUST MANIFOLD HEAT INSULATOR - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

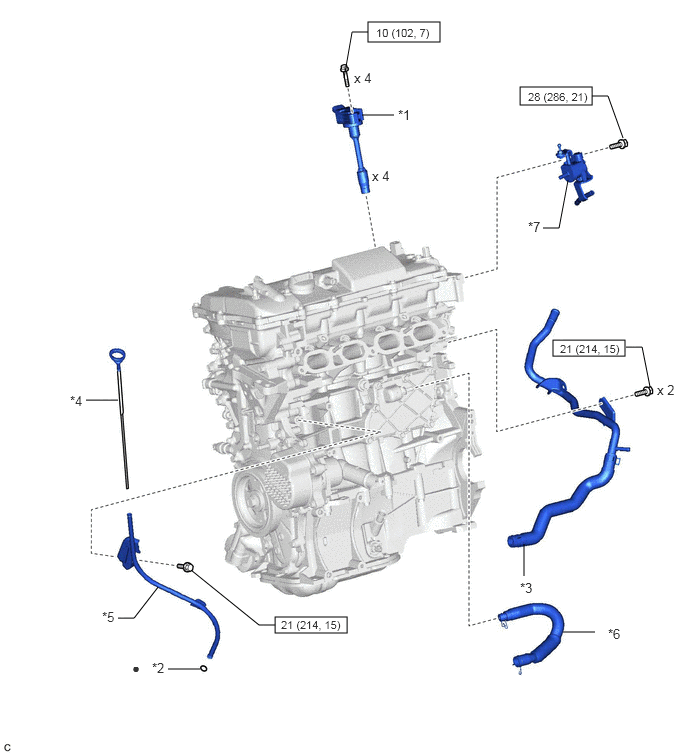

Fig 3: Engine Unit Replacement Components With Torque Specifications [01/2019 - 09/2022] (3 Of 8)
GTY860086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 IGNITION COIL ASSEMBLY *2 O-RING
*3 WATER BY-PASS PIPE *4 ENGINE OIL LEVEL DIPSTICK
*5 ENGINE OIL LEVEL DIPSTICK GUIDE *6 VENTILATION HOSE
*7 PURGE VALVE (PURGE VSV) - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Fig 4: Engine Unit Replacement Components With Torque Specifications [01/2019 - 09/2022] (4 Of 8)
GTY930334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OIL FILLER CAP SUB-ASSEMBLY *2 OIL FILLER CAP GASKET
*3 CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY *4 CAMSHAFT POSITION SENSOR
*5 CYLINDER HEAD COVER SUB-ASSEMBLY *6 CYLINDER HEAD COVER GASKET
*7 SPARK PLUG *8 SPARK PLUG TUBE GASKET
*9 O-RING *10 GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
* Precoated part - -

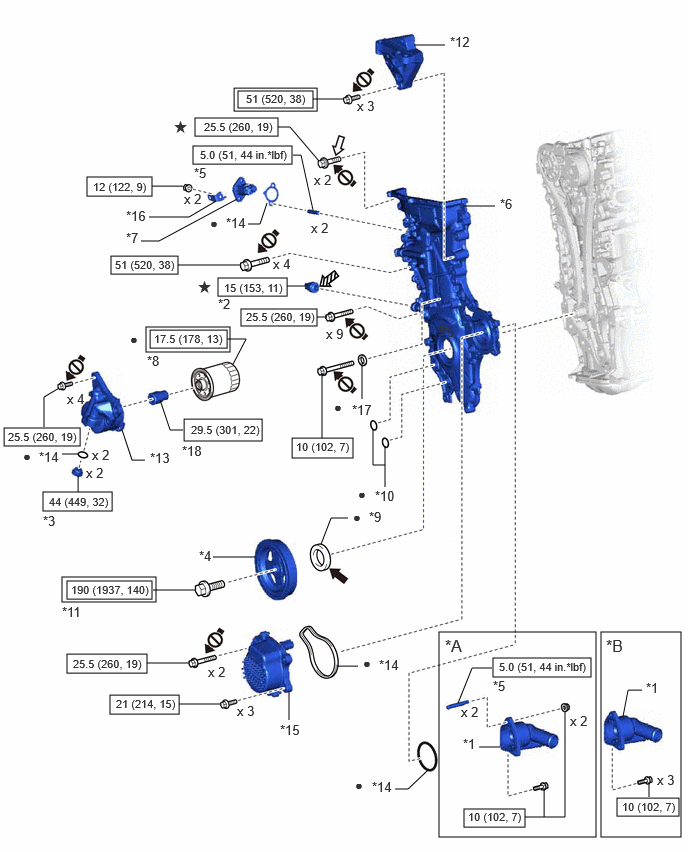

Fig 5: Engine Unit Replacement Components With Torque Specifications [01/2019 - 09/2022] (5 Of 8)
GTY1181153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A Type A *B Type B
*1 WATER INLET WITH THERMOSTAT SUB-ASSEMBLY *2 ENGINE OIL PRESSURE SWITCH ASSEMBLY
*3 OIL FILTER BRACKET WITH HEAD STRAIGHT SCREW PLUG *4 CRANKSHAFT PULLEY
*5 STUD BOLT *6 TIMING CHAIN COVER SUB-ASSEMBLY
*7 NO. 1 CHAIN TENSIONER ASSEMBLY *8 OIL FILTER SUB-ASSEMBLY
*9 TIMING CHAIN COVER OIL SEAL *10 OIL FILTER BRACKET O-RING
*11 CRANKSHAFT PULLEY SET BOLT *12 ENGINE MOUNTING BRACKET RH
*13 OIL FILTER BRACKET *14 GASKET
*15 ENGINE WATER PUMP ASSEMBLY *16 BRACKET
*17 SEAL WASHER *18 OIL FILTER UNION
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
• Non-reusable part MP grease
Adhesive 1324 Adhesive 1344
* Precoated part Do not apply lubricants to the threaded parts
Fig 6: Engine Unit Replacement Components With Torque Specifications [01/2019 - 09/2022] (6 Of 8)
GTY919354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OIL PUMP DRIVE GEAR *2 OIL PUMP DRIVE SHAFT GEAR
*3 NO. 1 CRANKSHAFT POSITION SENSOR PLATE *4 CRANKSHAFT TIMING SPROCKET
*5 CRANKSHAFT TIMING GEAR KEY *6 CRANKSHAFT POSITION SENSOR
*7 CHAIN SUB-ASSEMBLY *8 NO. 2 CHAIN SUB-ASSEMBLY
*9 CHAIN TENSIONER SLIPPER *10 CHAIN TENSIONER PLATE
*11 NO. 1 CHAIN VIBRATION DAMPER *12 NO. 2 CHAIN VIBRATION DAMPER
*13 CHAIN DAMPER SPRING *14 O-RING
*15 OIL PUMP DRIVE SHAFT GEAR NUT - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

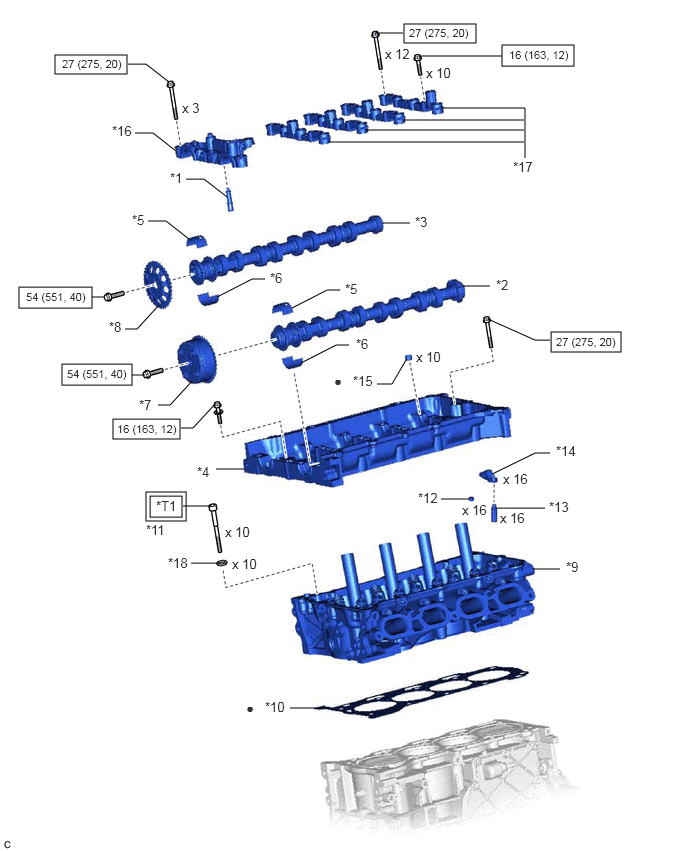

Fig 7: Engine Unit Replacement Components With Torque Specifications [01/2019 - 09/2022] (7 Of 8)
GTY863742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OIL CONTROL VALVE FILTER *2 CAMSHAFT
*3 NO. 2 CAMSHAFT *4 CAMSHAFT HOUSING SUB-ASSEMBLY
*5 NO. 1 CAMSHAFT BEARING *6 NO. 2 CAMSHAFT BEARING
*7 CAMSHAFT TIMING GEAR ASSEMBLY *8 CAMSHAFT TIMING SPROCKET
*9 CYLINDER HEAD SUB-ASSEMBLY *10 CYLINDER HEAD GASKET
*11 CYLINDER HEAD SET BOLT *12 VALVE STEM CAP
*13 VALVE LASH ADJUSTER ASSEMBLY *14 NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
*15 RING PIN *16 NO. 1 CAMSHAFT BEARING CAP
*17 NO. 2 CAMSHAFT BEARING CAP *18 CYLINDER HEAD SET PLATE WASHER
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
• Non-reusable part - -
*T1 1st: 49 (500, 36)
2nd: Turn 90°
3rd: Turn 45°		 - -
Fig 8: Engine Unit Replacement Components With Torque Specifications [01/2019 - 09/2022] (8 Of 8)
GTY896706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE OIL LEVEL SENSOR *2 REAR ENGINE OIL SEAL
*3 NO. 2 OIL PAN SUB-ASSEMBLY *4 OIL PUMP ASSEMBLY
*5 OIL PAN DRAIN PLUG *6 STUD BOLT
*7 STIFFENING CRANKCASE ASSEMBLY *8 KNOCK CONTROL SENSOR
*9 NO. 1 TAPER SCREW PLUG *10 PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
*11 RING PIN *12 GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
MP grease Adhesive 1324
* Precoated part - -
