Removal [09/2022 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. SECURE VEHICLE
    1. Fully apply the parking brake and chock a wheel.
      WARNING:
      • Make sure to apply the parking brake and chock a wheel before performing this procedure.
      • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.
      GTY655852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [09/2022 - 11/2022] , or refer to REMOVAL [11/2022 - ]

  3. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 7 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 7 [11/2022 - ]

  4. REMOVE FRONT FLOOR COVER LH (w/ Cover)

    Refer to PROCEDURE - Step 2

  5. REMOVE FRONT FLOOR COVER RH (w/ Cover)

    HINT:

    Use the same procedure as for the LH side.

  6. REMOVE FRONT FLOOR CENTER BRACE

    Refer to PROCEDURE - Step 4

  7. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

    Refer to PROCEDURE - Step 5

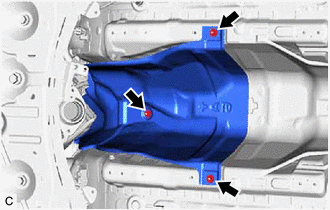

  8. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR
    1. Remove 3 nuts and front No. 1 floor heat insulator from the vehicle body.
      GTY1114872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE FLOOR SHIFT TRANSMISSION CONTROL SELECT CABLE
    1. Move the shift lever to N.
    2. Disconnect the floor shift transmission control select cable from the transmission floor shift assembly.
      GTY842649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Rotate the lock nut counterclockwise approximately 180° and, while holding the lock nut in that position, disconnect the floor shift transmission control select cable from the transmission floor shift assembly.
      GTY878834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Counterclockwise
      *b Lock Nut
      NOTE:

      Do not forcibly pull the floor shift transmission control select cable into the cabin.

    4. While disengaging the clip as shown in the illustration, disconnect the floor shift transmission control select cable from the transmission control shaft lever together with the clip.
      GTY1111651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip
      *b 45° to 60°
    5. Remove the clip and disconnect the floor shift transmission control select cable from the No. 1 transmission control cable bracket.
      GTY1114871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disconnect the floor shift transmission control select cable from the transmission control cable support.
      GTY1114870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the bolt and disconnect the floor shift transmission control select cable from the engine assembly.

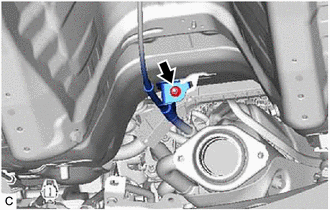

    8. Remove the nut and disconnect the floor shift transmission control select cable from the vehicle body.
      GTY1114869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

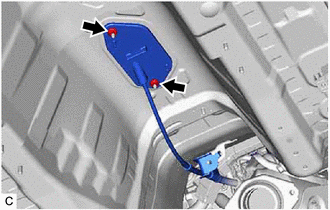

    9. Remove the 2 nuts and floor shift transmission control select cable from the vehicle body.
      GTY1114868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
