Components [09/2022 - ]

WARNING: This page is about a different variant/trim than selected.

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	Type A	*B	Type B
*1	NO. 1 ENGINE UNDER COVER ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 2: Transmission Control Cable Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/ Cover	-	-
*1	FRONT FLOOR COVER LH	*2	FRONT FLOOR COVER RH
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

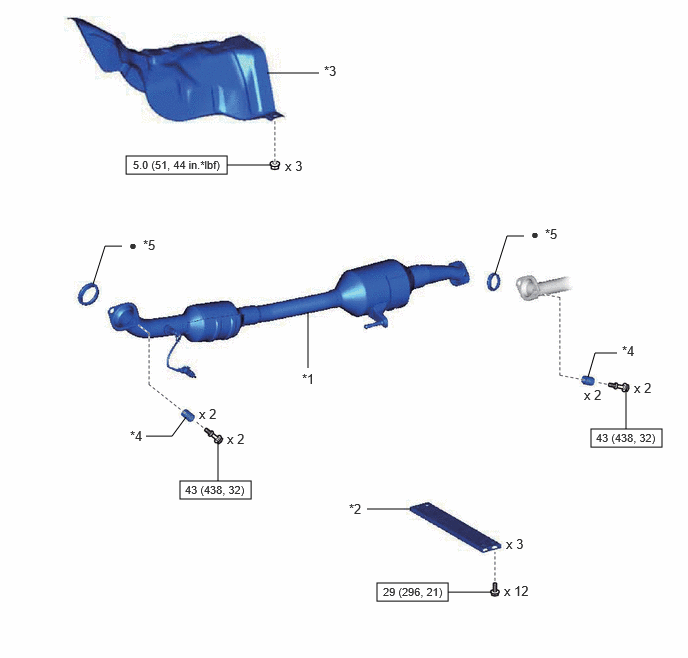

Fig 3: Transmission Control Cable Replacement Components With Torque Specifications (3 Of 4)

Callout	Description	Callout	Description
*1	FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)	*2	FRONT FLOOR CENTER BRACE
*3	FRONT NO. 1 FLOOR HEAT INSULATOR	*4	COMPRESSION SPRING
*5	GASKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

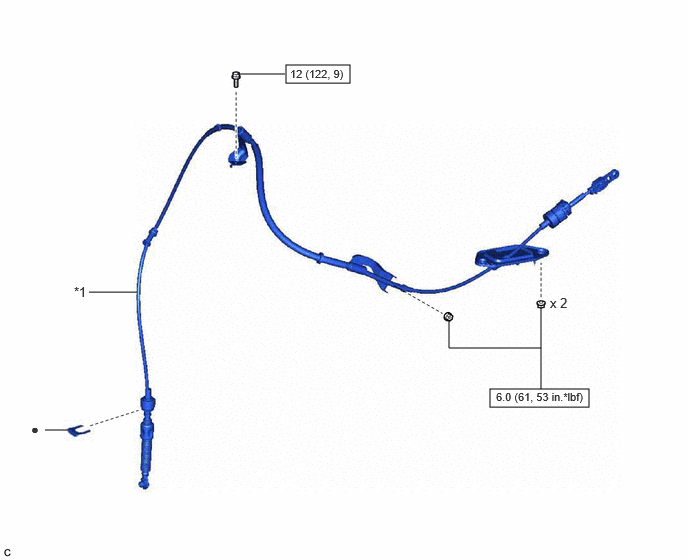

Fig 4: Transmission Control Cable Replacement Components With Torque Specifications (4 Of 4)

Callout	Description	Callout	Description
*1	FLOOR SHIFT TRANSMISSION CONTROL SELECT CABLE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
