Adjustment [09/2022 - ]: Procedure

1. Fully apply the parking brake and chock a wheel.
   WARNING:

   • Make sure to apply the parking brake and chock a wheel before performing this procedure.
   • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to REMOVAL [09/2022 - 11/2022] , or refer to REMOVAL [11/2022 - ]

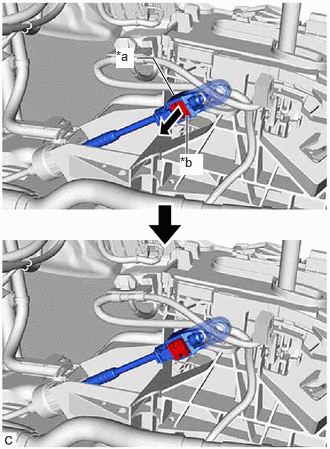

1. Slide the adjuster case cover in the direction shown by the arrow.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Adjuster Case
   *b	Adjuster Case Cover

2. Using a precision screwdriver, pull out the lock piece of the adjuster case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Adjuster Case
   *b	Lock Piece

3. Using your fingers, gently pull the cable rod towards the rear of the vehicle to remove backlash.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Cable Rod

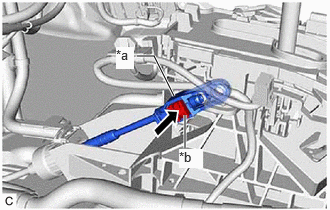

4. Push in the lock piece of the adjuster case to lock it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Adjuster Case
   *b	Lock Piece

   NOTE:

   • When pushing in the lock piece of the adjuster case to lock it, remove your hand from the lever shaft.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

     *1	Floor Shift Transmission Control Select Cable
     *a	Lever Shaft

   • When pushing in the lock piece of the adjuster case to lock it, do not move the lever shaft or floor shift transmission control select cable forward or backward.

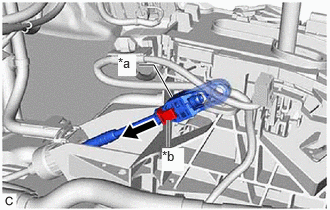

5. Move the adjuster case cover in the direction shown by the arrow.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Adjuster Case
   *b	Adjuster Case Cover

   NOTE:

   If the adjuster case cover is not moved far enough so that the adjuster case cover engages the lock piece, the cable will not be able to lock, and reliable shift operation will not be possible.

Refer to INSTALLATION [09/2022 - 11/2022] , or refer to INSTALLATION [11/2022 - ]
