Removal [09/2022 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    See step  1

  2. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 3 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 3 [11/2022 - ]

  3. REMOVE FRONT CONSOLE UPPER PANEL GARNISH

    Refer to PROCEDURE - Step 5 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 5 [11/2022 - ]

  4. REMOVE POSITION INDICATOR HOUSING ASSEMBLY

    Refer to PROCEDURE - Step 10 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 8 [11/2022 - ]

  5. REMOVE COMBINATION SWITCH ASSEMBLY

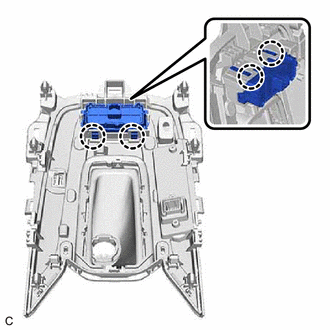

    1. Disengage the 4 claws and remove the combination switch assembly from the position indicator housing assembly.
      GTY845548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
