Removal [09/2022 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 7 [09/2022 - 11/2022]
, or refer to PROCEDURE - Step 7 [11/2022 - ]
- DRAIN COOLANT (for Inverter)
Refer to PROCEDURE - Step 1

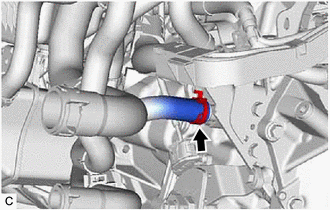

- DISCONNECT OUTLET NO. 2 INVERTER COOLING HOSE
- Slide the clip and disconnect the outlet No. 2 inverter cooling hose from the motor cooling cooler.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
Put pieces of cloth into the pipe and disconnected hose or cover the pipe and hose with plastic bags to prevent entry of foreign matter.

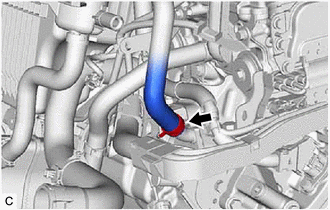

- DISCONNECT OUTLET NO. 1 INVERTER COOLING HOSE
- Slide the clip and disconnect the outlet No. 1 inverter cooling hose from the motor cooling cooler.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
Put pieces of cloth into the pipe and disconnected hose or cover the pipe and hose with plastic bags to prevent entry of foreign matter.

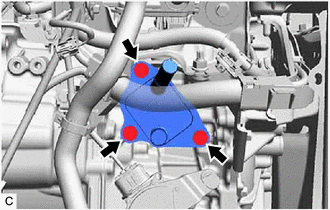

- REMOVE MOTOR COOLING COOLER
- Remove the 3 bolts and motor cooling cooler from the hybrid vehicle transaxle assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 2 gaskets from the motor cooling cooler.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
