Components [09/2022 - ]

WARNING: This page is about a different variant/trim than selected.

Fig 1: Oil Cooler Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	Type A	*B	Type B
*1	NO. 1 ENGINE UNDER COVER ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

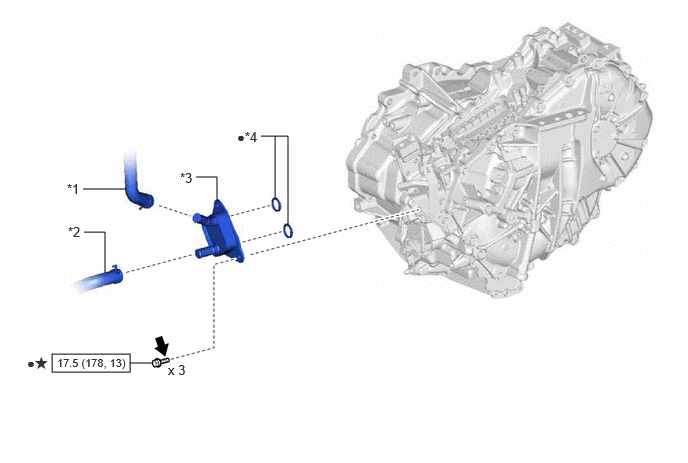

Fig 2: Oil Cooler Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	OUTLET NO. 1 INVERTER COOLING HOSE	*2	OUTLET NO. 2 INVERTER COOLING HOSE
*3	MOTOR COOLING COOLER	*4	GASKET
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent	*	Precoated part
