Components [09/2022 - ]

WARNING: This page is about a different variant/trim than selected.

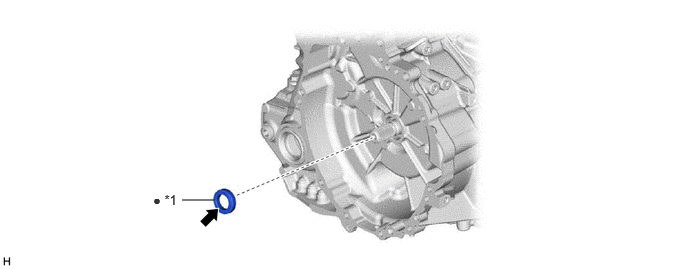

Fig 1: Input Shaft Oil Seal Replacement Components
GTY1119112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 INPUT SHAFT TYPE T OIL SEAL - -
• Non-reusable part MP grease
