On-Vehicle Inspection [09/2022 - ]: Procedure

Refer to PROCEDURE - Step 7 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 7 [11/2022 - ]

1. Remove the filler plug and gasket from the hybrid vehicle transaxle assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

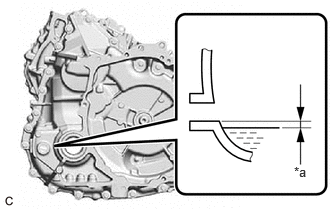

2. Check that the hybrid transaxle fluid level is between 0 to 6 mm (0 to 0.236 in.) from the bottom lip of the filler plug opening.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	0 to 6 mm (0 to 0.236 in.)

   NOTE:

   • When inspecting the hybrid transaxle fluid, make sure that the vehicle is level.
   • Be sure to directly check that the hybrid transaxle fluid level is within the specified range.
   • Driving the vehicle with an insufficient or excessive amount of hybrid transaxle fluid may damage the hybrid vehicle transaxle assembly.
   • If the hybrid transaxle fluid was replaced or if hybrid transaxle fluid was added, make sure to recheck the hybrid transaxle fluid level after driving the vehicle.
3. Check for leaks if the hybrid transaxle fluid level is low. (If there are no hybrid transaxle fluid leaks but the hybrid transaxle fluid level is low, add hybrid transaxle fluid.)

   See step  3

4. Install the filler plug and a new gasket to the hybrid vehicle transaxle assembly.

   Torque: 50 N.m (510 kgf/cm, 37 ft.lbf)

See step  5

Refer to PROCEDURE - Step 63
