Removal [09/2022 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

    Refer to REMOVAL [09/2022 - 11/2022] , or refer to REMOVAL [11/2022 - ]

  2. REMOVE ENGINE WATER PUMP ASSEMBLY
    1. Disconnect the engine water pump assembly connector.

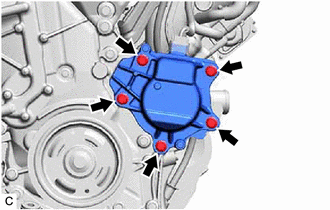

    2. Remove the 5 bolts and engine water pump assembly from the timing chain cover sub-assembly.
      GTY1104809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

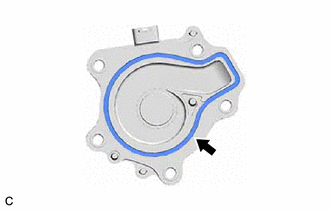

    3. Remove the gasket from the engine water pump assembly.
      GTY1104810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
