Removal [04/2020 - 09/2022]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
Refer to REMOVAL [04/2020 - 09/2022]
- REMOVE ENGINE WATER PUMP ASSEMBLY
- Disconnect the engine water pump assembly connector.

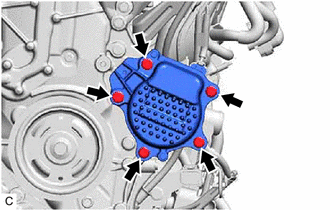

- Remove the 5 bolts and engine water pump assembly from the timing chain cover sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

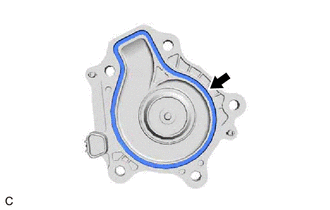

- Remove the gasket from the engine water pump assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
