Components [01/2019 - 09/2022]

WARNING: This page is about a different variant/trim than selected.

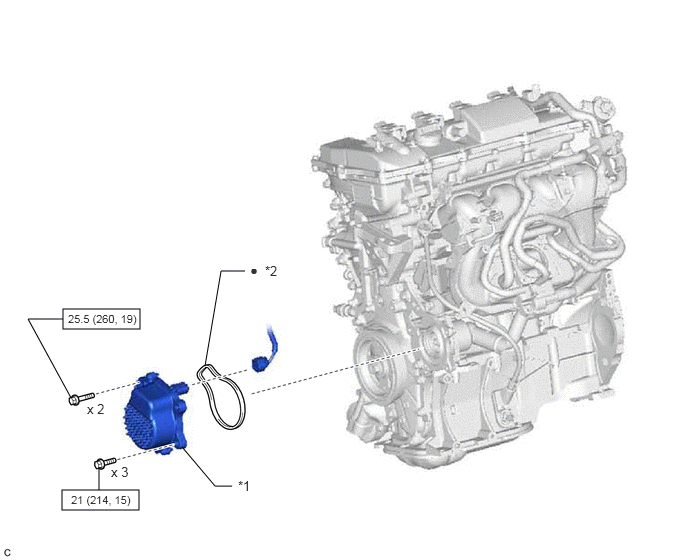

Fig 1: Water Pump Replacement Components With Torque Specifications [01/2019 - 09/2022]
GTY539008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE WATER PUMP ASSEMBLY *2 GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
