Components [01/2019 - ]

WARNING: This page is about a different variant/trim than selected.

Fig 1: Thermostat Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 1 ENGINE UNDER COVER ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

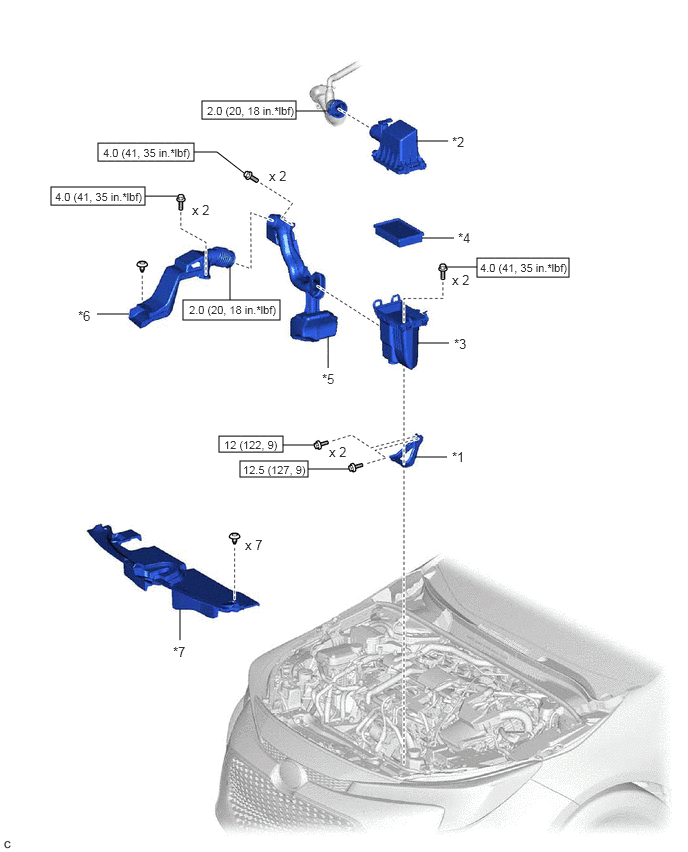

Fig 2: Thermostat Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	AIR CLEANER BRACKET	*2	AIR CLEANER CAP SUB-ASSEMBLY
*3	AIR CLEANER CASE SUB-ASSEMBLY	*4	AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
*5	INLET NO. 1 AIR CLEANER	*6	INLET NO. 2 AIR CLEANER
*7	RADIATOR SUPPORT OPENING COVER	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

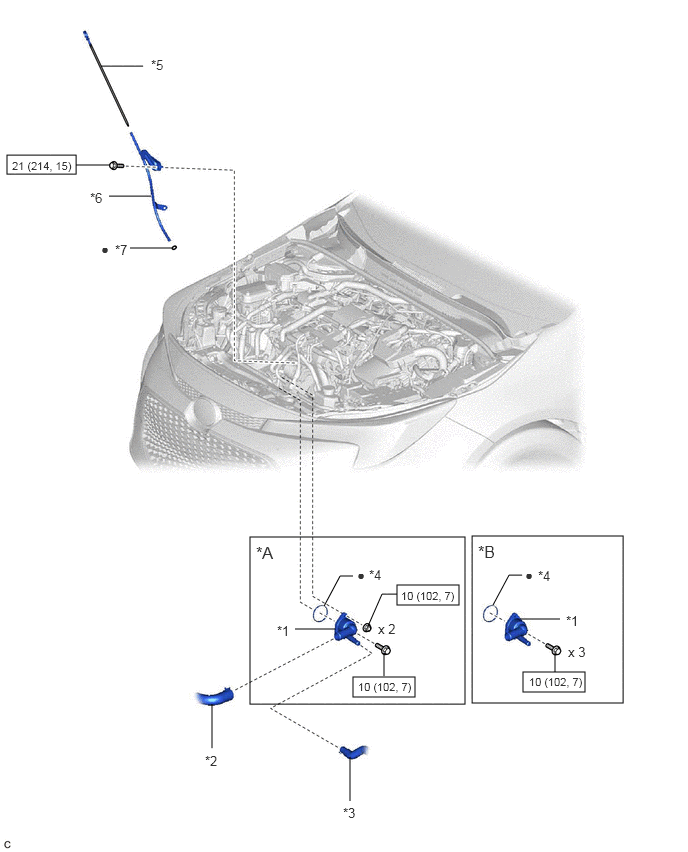

Fig 3: Thermostat Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*A	Type A	*B	Type B
*1	WATER INLET WITH THERMOSTAT SUB-ASSEMBLY	*2	NO. 2 RADIATOR HOSE
*3	NO. 3 WATER BY-PASS HOSE	*4	GASKET
*5	ENGINE OIL LEVEL DIPSTICK	*6	ENGINE OIL LEVEL DIPSTICK GUIDE
*7	ENGINE OIL LEVEL DIPSTICK GUIDE O-RING	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
