Components [09/2022 - ]

WARNING: This page is about a different variant/trim than selected.

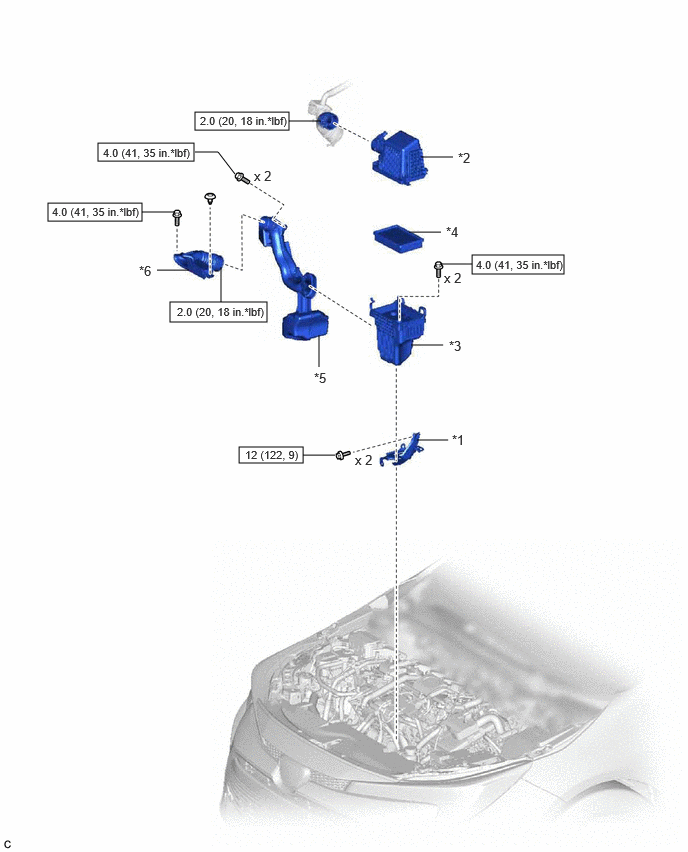

Fig 1: Cooling Fan Motor Replacement Components With Torque Specifications [09/2022 - ] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	AIR CLEANER BRACKET	*2	AIR CLEANER CAP SUB-ASSEMBLY
*3	AIR CLEANER CASE SUB-ASSEMBLY	*4	AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
*5	INLET NO. 1 AIR CLEANER	*6	INLET NO. 2 AIR CLEANER
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

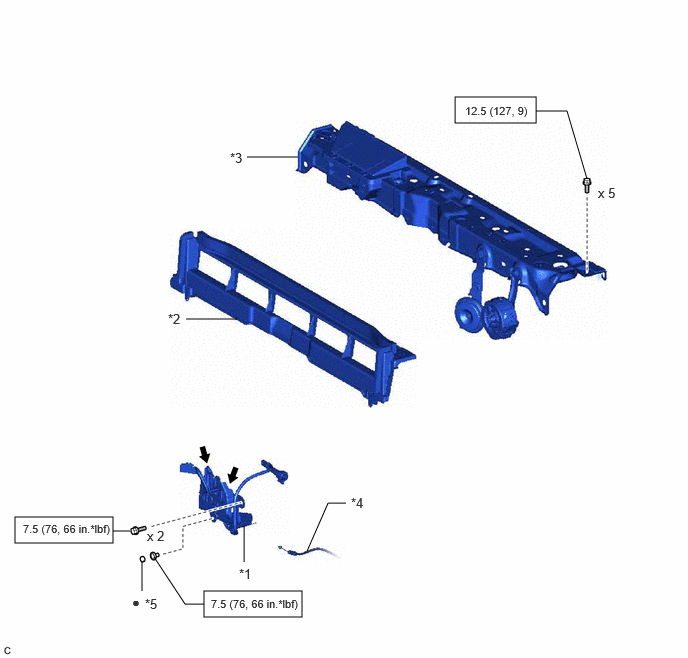

Fig 2: Cooling Fan Motor Replacement Components With Torque Specifications [09/2022 - ] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	HOOD LOCK ASSEMBLY	*2	NO. 2 RADIATOR AIR GUIDE
*3	UPPER RADIATOR SUPPORT SUB-ASSEMBLY	*4	HOOD LOCK CONTROL CABLE ASSEMBLY
*5	HOOD LOCK NUT CAP	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP grease	-	-

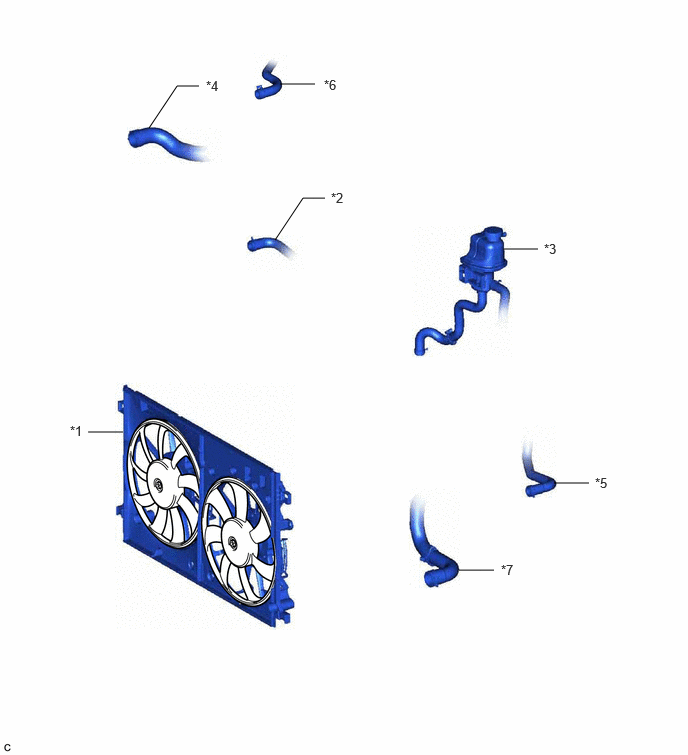

Fig 3: Cooling Fan Motor Replacement Components [09/2022 - ] (3 Of 4)

Callout	Description	Callout	Description
*1	FAN WITH MOTOR ASSEMBLY	*2	INLET HYBRID RADIATOR HOSE
*3	INVERTER RESERVE TANK ASSEMBLY	*4	NO. 2 RADIATOR HOSE
*5	INLET NO. 1 INVERTER COOLING HOSE	*6	NO. 1 WATER BY-PASS HOSE
*7	NO. 1 RADIATOR HOSE	-	-

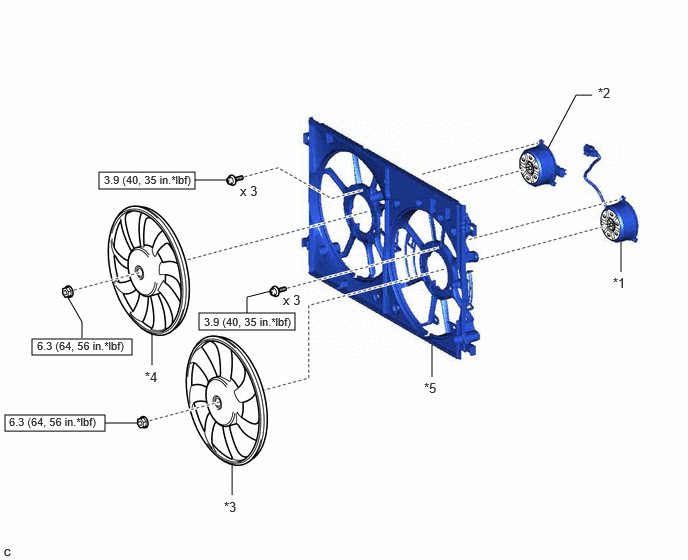

Fig 4: Cooling Fan Motor Replacement Components With Torque Specifications [09/2022 - ] (4 Of 4)

Callout	Description	Callout	Description
*1	COOLING FAN MOTOR LH	*2	COOLING FAN MOTOR RH
*3	FAN LH	*4	FAN RH
*5	FAN SHROUD	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
